SKU: M-UELF210D1-NTN

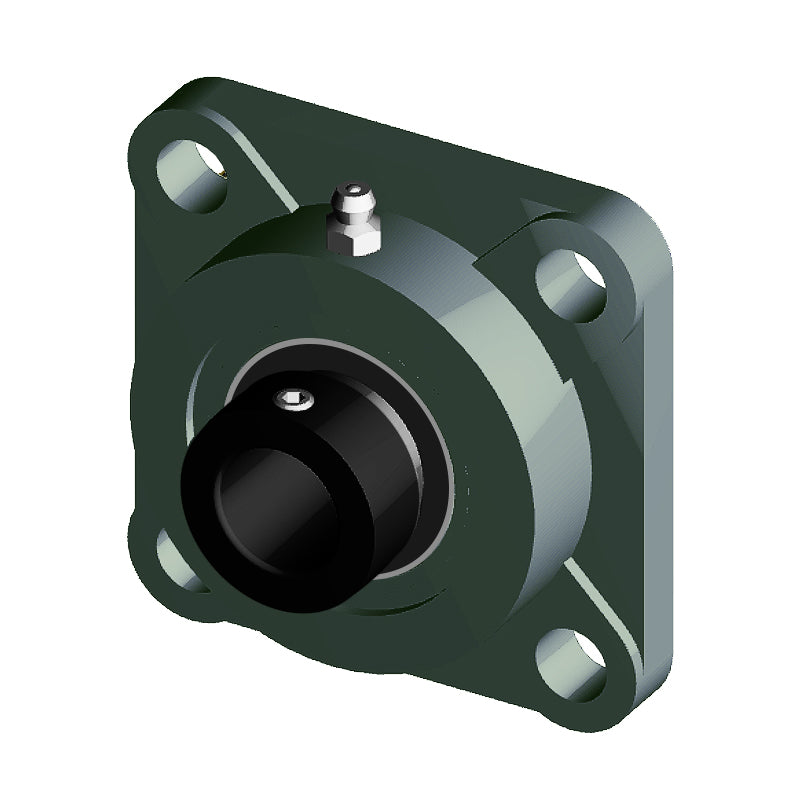

NTN M-UELF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 7,371.32
Regular price
Sale price
Rs. 7,371.32
Taxes included.
In stock
Price Break
10+
Rs. 6,560.47
19+
Rs. 6,191.91
29+
Rs. 6,118.20
39+
Rs. 6,044.48
49+
Rs. 5,970.77
74+
Rs. 5,897.06
99+
Rs. 5,528.49
199+
Rs. 5,454.78
249+
Rs. 5,381.06
499+
Rs. 5,307.35
999+
Rs. 5,159.92
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UELF
- Bolt Hole Centres:
- 111mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| L | 143mm |
| J | 111mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 40mm |
| N | 16mm |
| A<sub>0</sub> | 60.1mm |
| B<sub>1</sub> | 62.7mm |
| S | 24.6mm |
| F min. | 67mm |
| Fixing bolt | M14 |
| Mass | 2.7 kg |
