SKU: M-UELF208D1-NTN

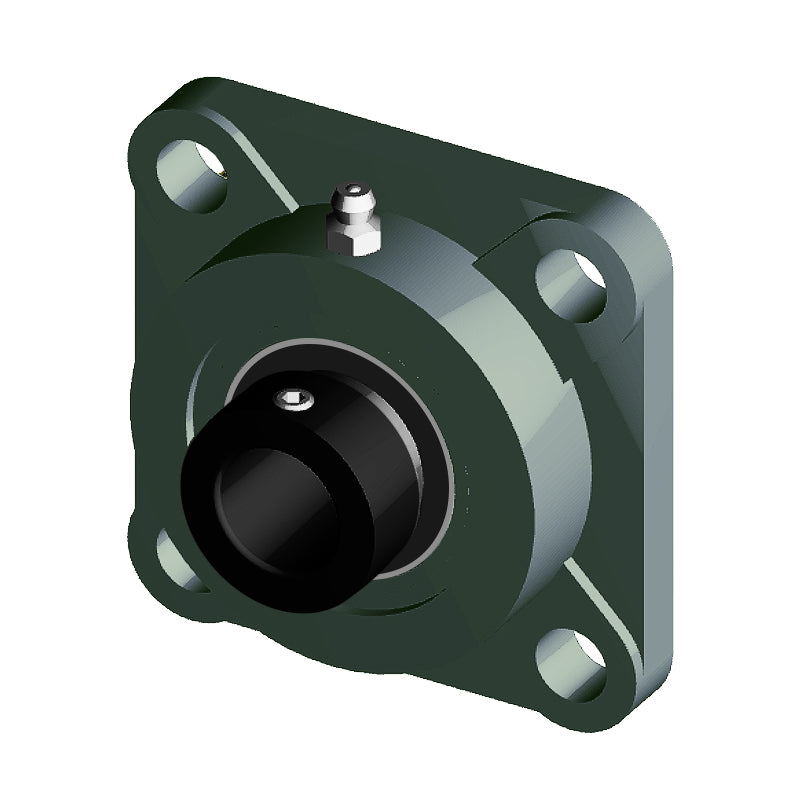

NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,591.86
Regular price
Sale price
Rs. 5,591.86
Taxes included.
In stock
Price Break
10+
Rs. 4,976.76
19+
Rs. 4,697.16
29+
Rs. 4,641.24
39+
Rs. 4,585.33
49+
Rs. 4,529.41
74+
Rs. 4,473.49
99+
Rs. 4,193.90
199+
Rs. 4,137.98
249+
Rs. 4,082.06
499+
Rs. 4,026.14
999+
Rs. 3,914.30
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 130mm |
| J | 102mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| A<sub>0</sub> | 55.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 57mm |
| Fixing bolt | M14 |
| Mass | 1.9 kg |
