SKU: M-UELF206D1-NTN

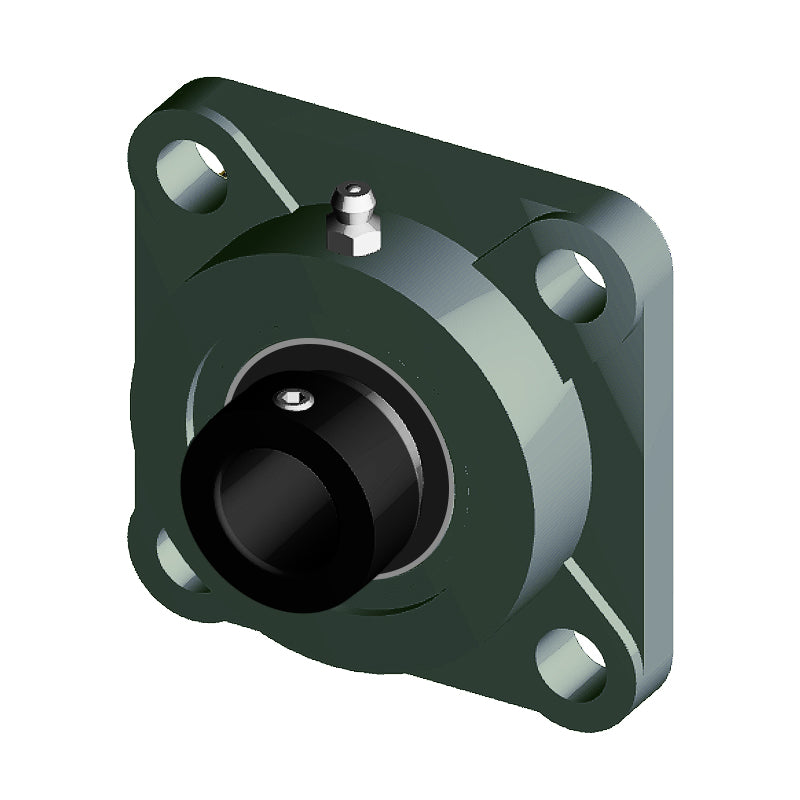

NTN M-UELF206D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF206D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
Rs. 5,106.67
Regular price
Sale price
Rs. 5,106.67
Taxes included.
In stock
Price Break
5+
Rs. 5,055.60
10+
Rs. 4,851.34
20+
Rs. 4,749.20
50+
Rs. 4,596.00
100+
Rs. 4,493.87
500+
Rs. 4,238.54
1000+
Rs. 3,574.67
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UELF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| L | 108mm |
| J | 83mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 12mm |
| A<sub>0</sub> | 48.15mm |
| B<sub>1</sub> | 48.4mm |
| S | 18.25mm |
| F min. | 45mm |
| Fixing bolt | M10 |
| Mass | 1.2 kg |
