SKU: M-UCUP208D1-NTN

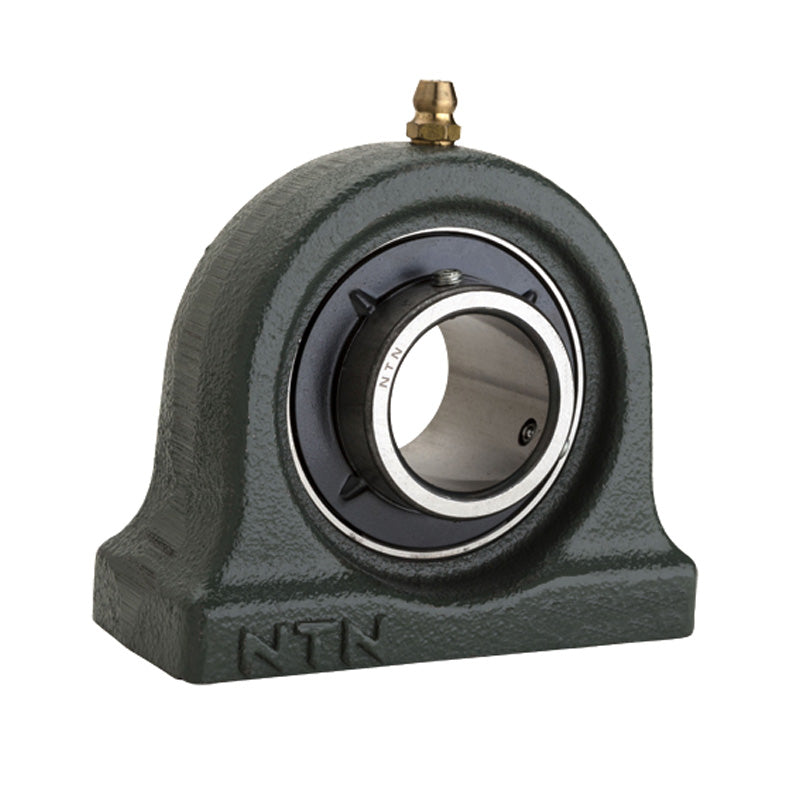

NTN M-UCUP208D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
NTN M-UCUP208D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 5,846.62
Regular price
Sale price
Rs. 5,846.62
Taxes included.
In stock
Price Break
10+
Rs. 5,203.49
19+
Rs. 4,911.16
29+
Rs. 4,852.69
39+
Rs. 4,794.23
49+
Rs. 4,735.76
74+
Rs. 4,677.30
99+
Rs. 4,384.97
199+
Rs. 4,326.50
249+
Rs. 4,268.03
499+
Rs. 4,209.57
999+
Rs. 4,092.63
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCUP
- Bolt Hole Centres:
- 84mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 49.2mm |
| L | 116mm |
| J | 84mm |
| A | 54mm |
| j | 20mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 100mm |
| B | 49.2mm |
| S | 19mm |
| N | M14X2 |
| Mass | 1.8 kg |
