SKU: M-UCUP207D1-NTN

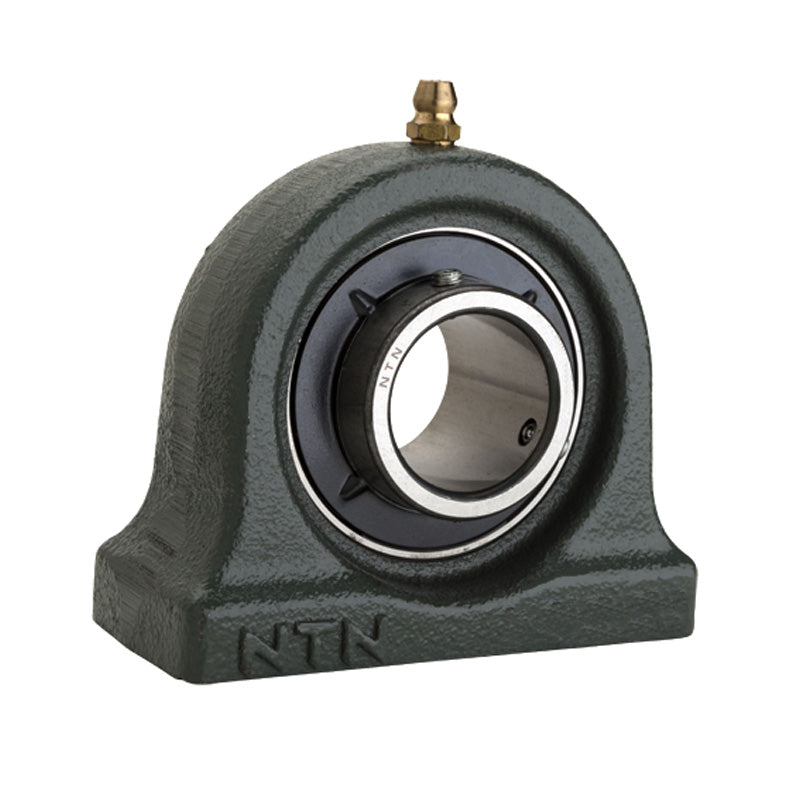

NTN M-UCUP207D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert - Allow 2-3 Days
NTN M-UCUP207D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 5,338.38
Regular price
Sale price
Rs. 5,338.38
Taxes included.
In stock
Price Break
10+
Rs. 4,751.16
19+
Rs. 4,484.24
29+
Rs. 4,430.86
39+
Rs. 4,377.47
49+
Rs. 4,324.09
74+
Rs. 4,270.70
99+
Rs. 4,003.79
199+
Rs. 3,950.40
249+
Rs. 3,897.02
499+
Rs. 3,843.63
999+
Rs. 3,736.87
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCUP
- Bolt Hole Centres:
- 80mm
Technical
Technical
| Shaft diameter | 35mm |
|---|---|
| H | 47.6mm |
| L | 110mm |
| J | 80mm |
| A | 48mm |
| j | 20mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 95mm |
| B | 42.9mm |
| S | 17.5mm |
| N | M14X2 |
| Mass | 1.6 kg |
