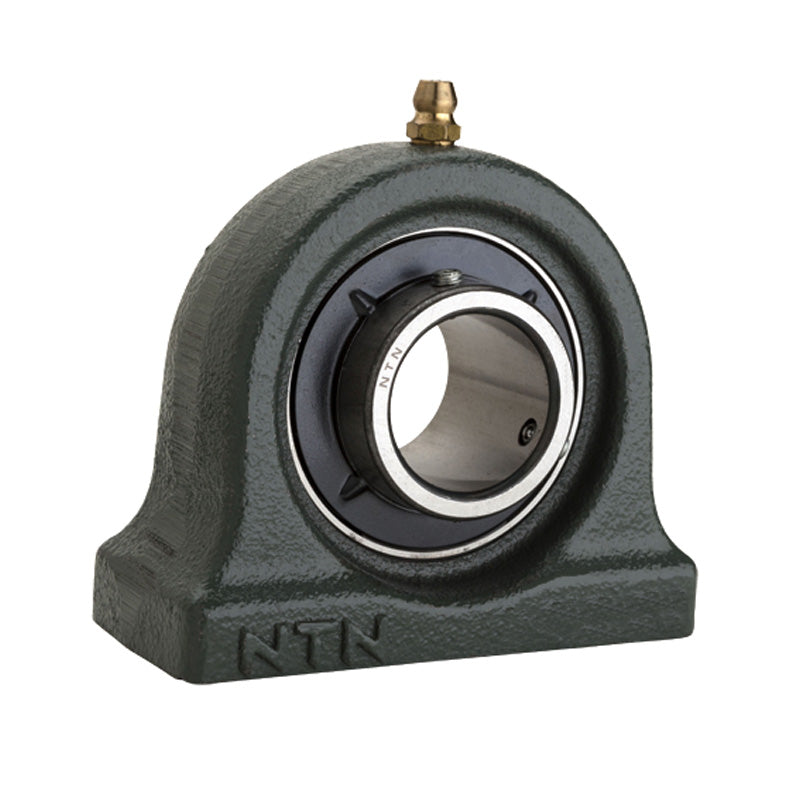

NTN M-UCUP205D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
NTN M-UCUP205D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,024.91
Regular price
Sale price
Rs. 4,024.91
Taxes included.
In stock
Price Break
10+
Rs. 3,582.17
19+
Rs. 3,380.92
29+
Rs. 3,340.68
39+
Rs. 3,300.43
49+
Rs. 3,260.18
74+
Rs. 3,219.93
99+
Rs. 3,018.68
199+
Rs. 2,978.43
249+
Rs. 2,938.18
499+
Rs. 2,897.94
999+
Rs. 2,817.44
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCUP
- Bolt Hole Centres:
- 56mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 36.5mm |
| L | 84mm |
| J | 56mm |
| A | 38mm |
| j | 15mm |
| H<sub>1</sub> | 12mm |
| H<sub>2</sub> | 72mm |
| B | 34.1mm |
| S | 14.3mm |
| N | M10X1.5 |
| Mass | 0.7 kg |
