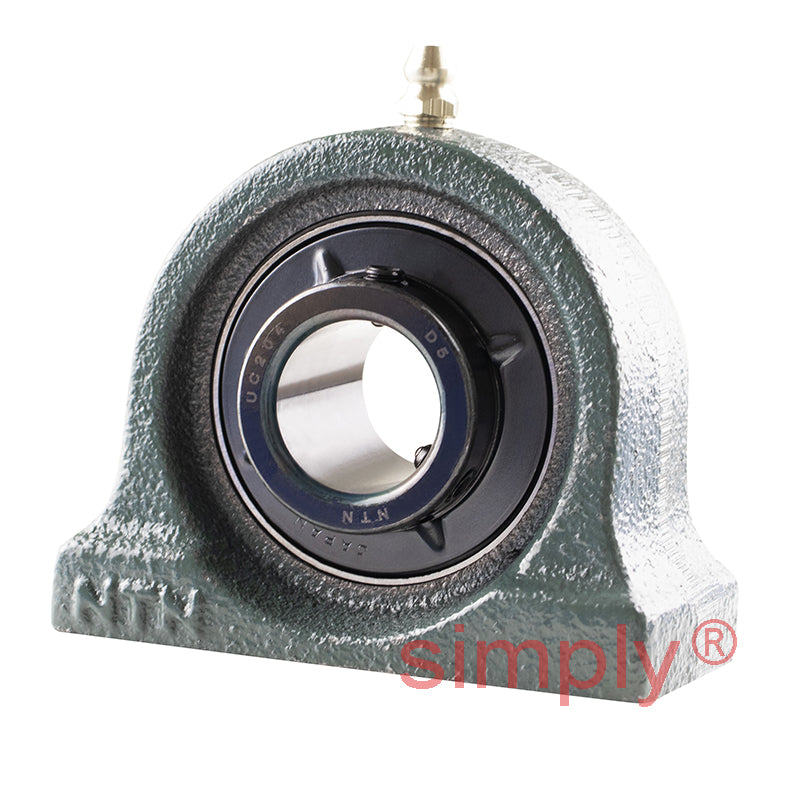

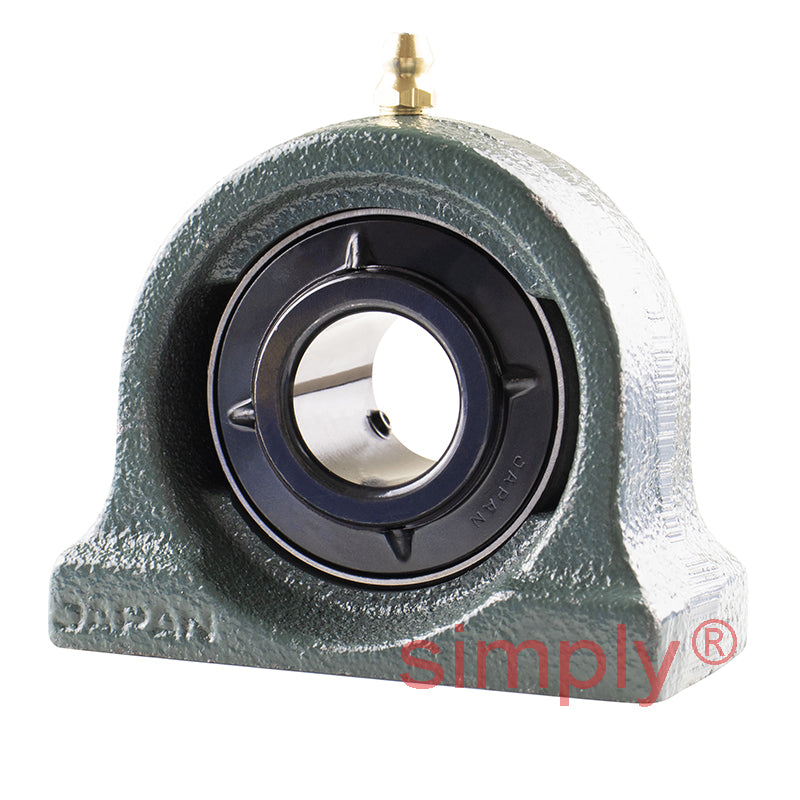

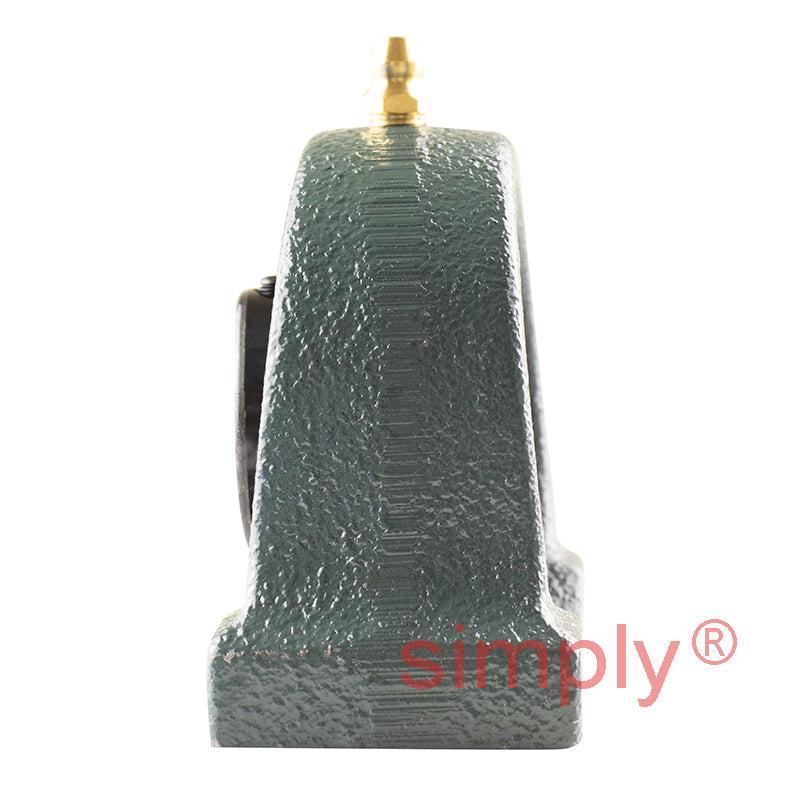

NTN M-UCUP204D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert
NTN M-UCUP204D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert
Regular price
Rs. 3,671.58
Regular price
Sale price
Rs. 3,671.58
Taxes included.
In stock
Price Break
10+
Rs. 3,267.71
19+
Rs. 3,084.13
29+
Rs. 3,047.41
39+
Rs. 3,010.70
49+
Rs. 2,973.98
74+
Rs. 2,937.26
99+
Rs. 2,753.69
199+
Rs. 2,716.97
249+
Rs. 2,680.25
499+
Rs. 2,643.54
999+
Rs. 2,570.11
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCUP
- Bolt Hole Centres:
- 52mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 30.2mm |
| L | 76mm |
| J | 52mm |
| A | 38mm |
| j | 13mm |
| H<sub>1</sub> | 11mm |
| H<sub>2</sub> | 62mm |
| B | 31mm |
| S | 12.7mm |
| N | M10X1.5 |
| Mass | 0.6 kg |
