SKU: M-UCP208D1-NTN

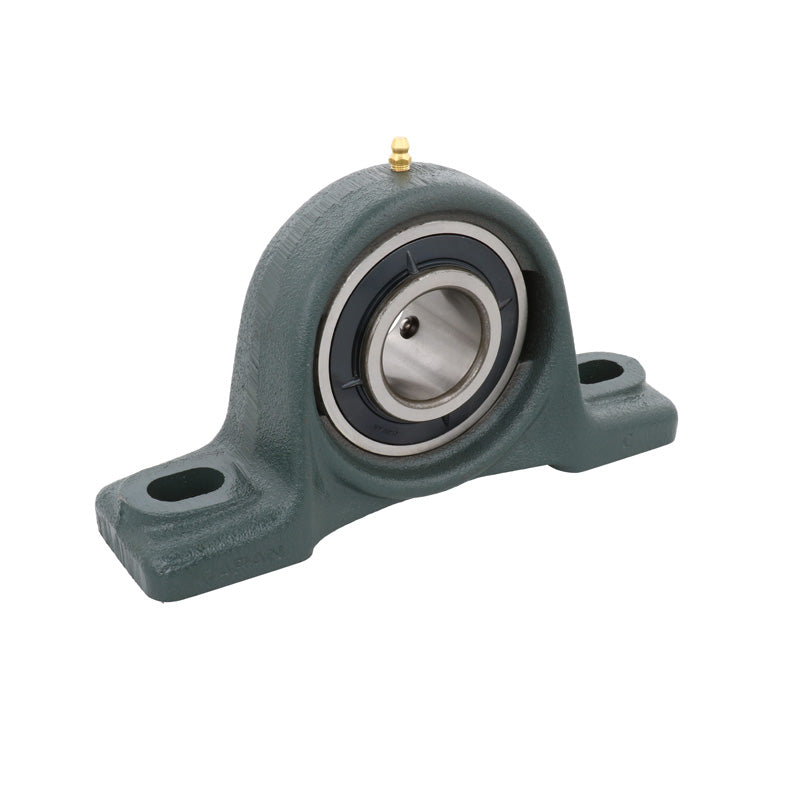

NTN M-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
NTN M-UCP208D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,562.59
Regular price
Sale price
Rs. 4,562.59
Taxes included.
In stock
Price Break
10+
Rs. 4,060.71
19+
Rs. 3,832.58
29+
Rs. 3,786.95
39+
Rs. 3,741.32
49+
Rs. 3,695.70
74+
Rs. 3,650.07
99+
Rs. 3,421.94
199+
Rs. 3,376.32
249+
Rs. 3,330.69
499+
Rs. 3,285.06
999+
Rs. 3,193.81
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCP
- Bolt Hole Centres:
- 137mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| H | 49.2mm |
| L | 184mm |
| J | 137mm |
| A | 54mm |
| N | 17mm |
| N<sub>1</sub> | 20mm |
| H<sub>1</sub> | 18mm |
| H<sub>2</sub> | 98mm |
| L<sub>1</sub> | 52mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 32.5 kN |
| Static load C<sub>0r</sub> | 17.8 kN |
| Fatigue load limit C<sub>u</sub> | 1.24 kN |
| --- | Unit information |
| Mass | 1.9 kg |
