SKU: M-UCP203D1-NTN

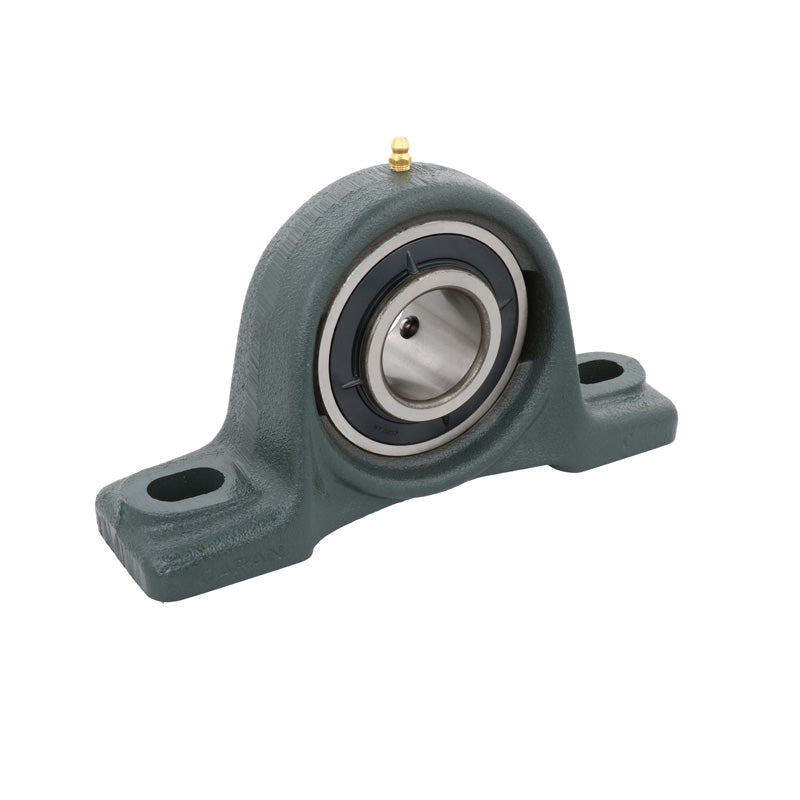

NTN M-UCP203D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Bore Insert - Allow 2-3 Days
NTN M-UCP203D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,834.34
Regular price
Sale price
Rs. 2,834.34
Taxes included.
In stock
Price Break
5+
Rs. 2,806.00
10+
Rs. 2,692.62
20+
Rs. 2,635.94
50+
Rs. 2,550.91
100+
Rs. 2,494.22
500+
Rs. 2,352.50
1000+
Rs. 1,984.04
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- UCP
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| H | 30.2mm |
| L | 127mm |
| J | 95mm |
| A | 38mm |
| N | 13mm |
| N<sub>1</sub> | 16mm |
| H<sub>1</sub> | 14mm |
| H<sub>2</sub> | 62mm |
| L<sub>1</sub> | 42mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.7 kg |
