SKU: M-UCHP206D1-NTN

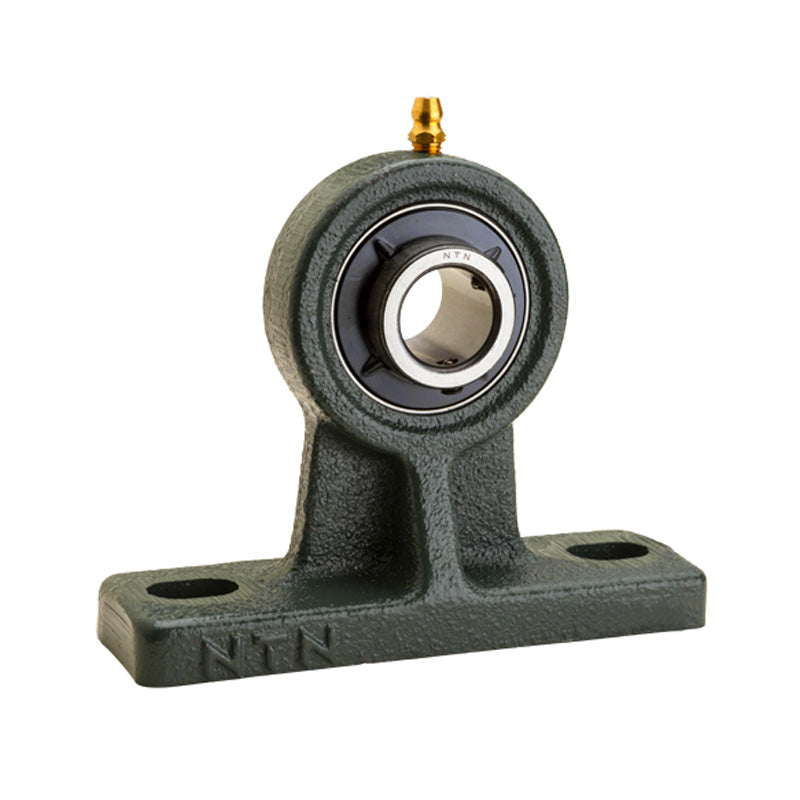

NTN M-UCHP206D1 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
NTN M-UCHP206D1 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,538.27
Regular price
Sale price
Rs. 4,538.27
Taxes included.
In stock
Price Break
5+
Rs. 4,492.89
10+
Rs. 4,311.36
20+
Rs. 4,220.59
50+
Rs. 4,084.44
100+
Rs. 3,993.68
500+
Rs. 3,766.76
1000+
Rs. 3,176.79
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCHP
- Bolt Hole Centres:
- 120mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H | 90mm |
| L | 165mm |
| J | 120mm |
| A | 50mm |
| N | 17mm |
| N<sub>1</sub> | 21mm |
| H<sub>1</sub> | 16mm |
| H<sub>2</sub> | 130mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M14 |
| Mass | 1.8 kg |
