SKU: M-UCHP205D1-NTN

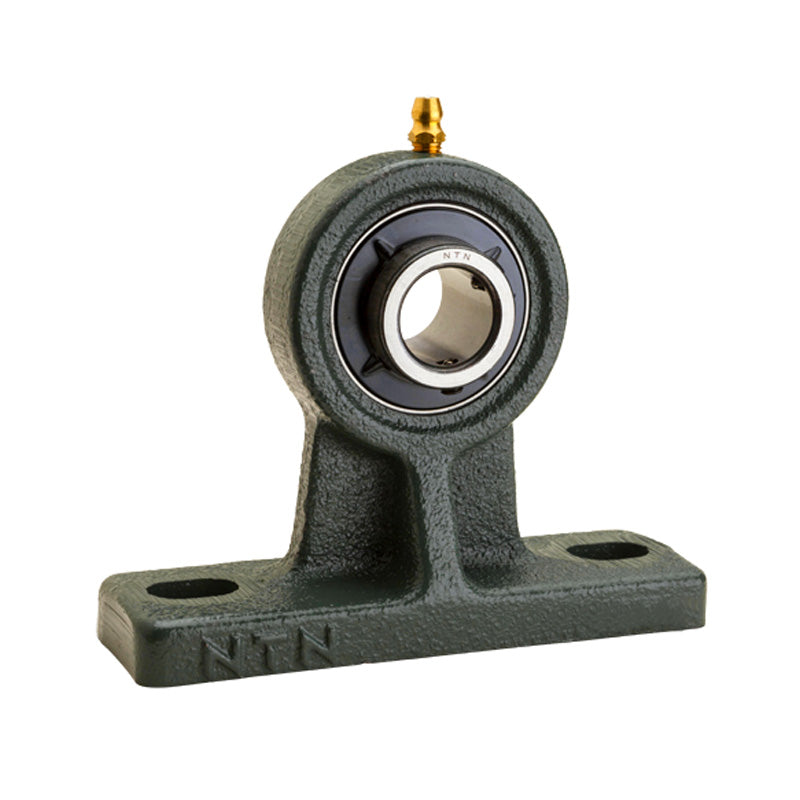

NTN M-UCHP205D1 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
NTN M-UCHP205D1 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 3,971.14
Regular price
Sale price
Rs. 3,971.14
Taxes included.
In stock
Price Break
5+
Rs. 3,931.43
10+
Rs. 3,772.58
20+
Rs. 3,693.16
50+
Rs. 3,574.03
100+
Rs. 3,494.60
500+
Rs. 3,296.05
1000+
Rs. 2,779.80
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCHP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 80mm |
| L | 142mm |
| J | 105mm |
| A | 50mm |
| N | 13mm |
| N<sub>1</sub> | 19mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 114mm |
| B | 34.1mm |
| S | 14.3mm |
| Fixing bolt | M10 |
| Mass | 1.2 kg |
