SKU: M-UCHB206D1-NTN

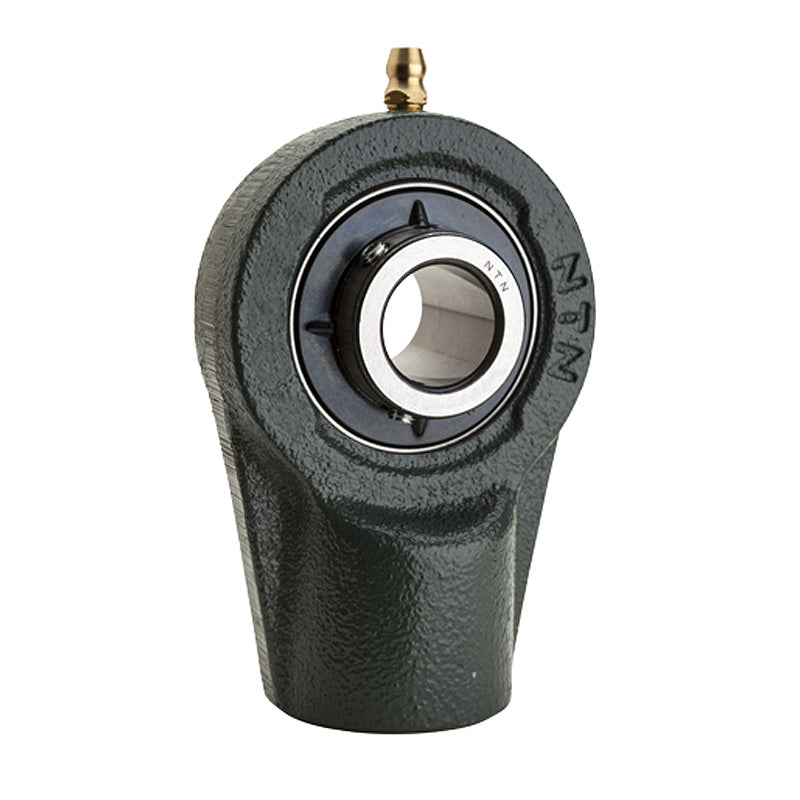

NTN M-UCHB206D1 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
NTN M-UCHB206D1 Metric Cast Iron Hanger Bearing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 4,830.15
Regular price
Sale price
Rs. 4,830.15
Taxes included.
In stock
Price Break
10+
Rs. 4,298.83
19+
Rs. 4,057.33
29+
Rs. 4,009.02
39+
Rs. 3,960.72
49+
Rs. 3,912.42
74+
Rs. 3,864.12
99+
Rs. 3,622.61
199+
Rs. 3,574.31
249+
Rs. 3,526.01
499+
Rs. 3,477.71
999+
Rs. 3,381.11
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| L | 78mm |
| H<sub>1</sub> | 103mm |
| c | 0mm |
| A | 28mm |
| H | 64mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 38.1mm |
| S | 15.9mm |
| Mass | 0.8 kg |
