SKU: M-UCFH206D1-NTN

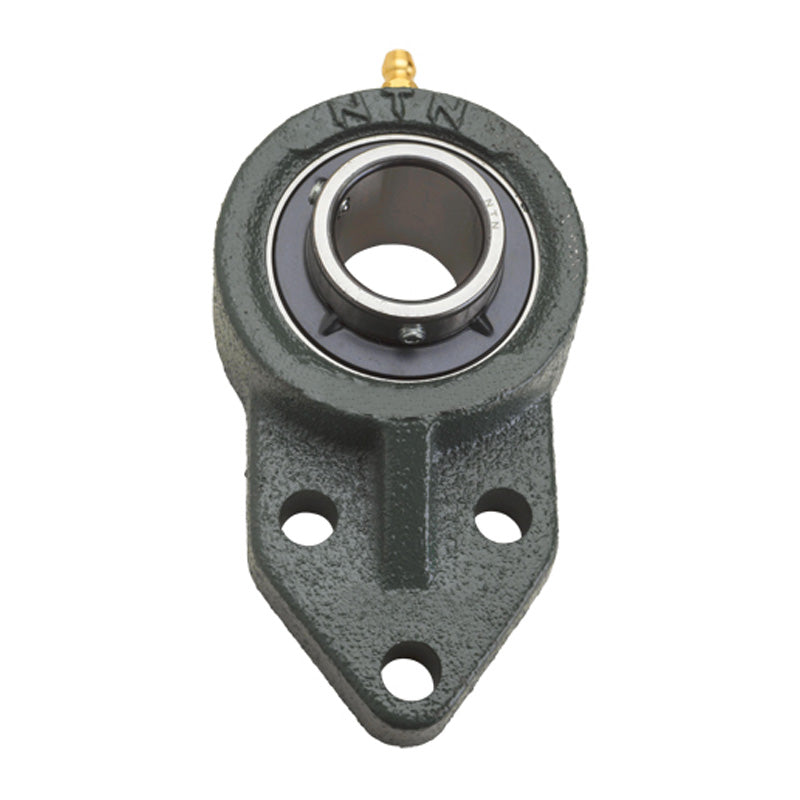

NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
NTN M-UCFH206D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore - Allow 2-3 Days
Regular price
Rs. 4,293.75
Regular price
Sale price
Rs. 4,293.75
Taxes included.
In stock
Price Break
10+
Rs. 3,821.44
19+
Rs. 3,606.75
29+
Rs. 3,563.81
39+
Rs. 3,520.88
49+
Rs. 3,477.94
74+
Rs. 3,435.00
99+
Rs. 3,220.31
199+
Rs. 3,177.38
249+
Rs. 3,134.44
499+
Rs. 3,091.50
999+
Rs. 3,005.63
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCFH
- Bolt Hole Centres:
- 40mm
Technical
Technical
| Shaft diameter | 30mm |
|---|---|
| H<sub>3</sub> | 130mm |
| J | 40mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 13mm |
| A | 31mm |
| N | 10mm |
| H | 50mm |
| H<sub>1</sub> | 29mm |
| L<sub>1</sub> | 65mm |
| H<sub>2</sub> | 55mm |
| L | 78mm |
| A<sub>0</sub> | 40.2mm |
| B | 38.1mm |
| S | 15.9mm |
| Fixing bolt | M8 |
| Mass | 0.9 kg |
