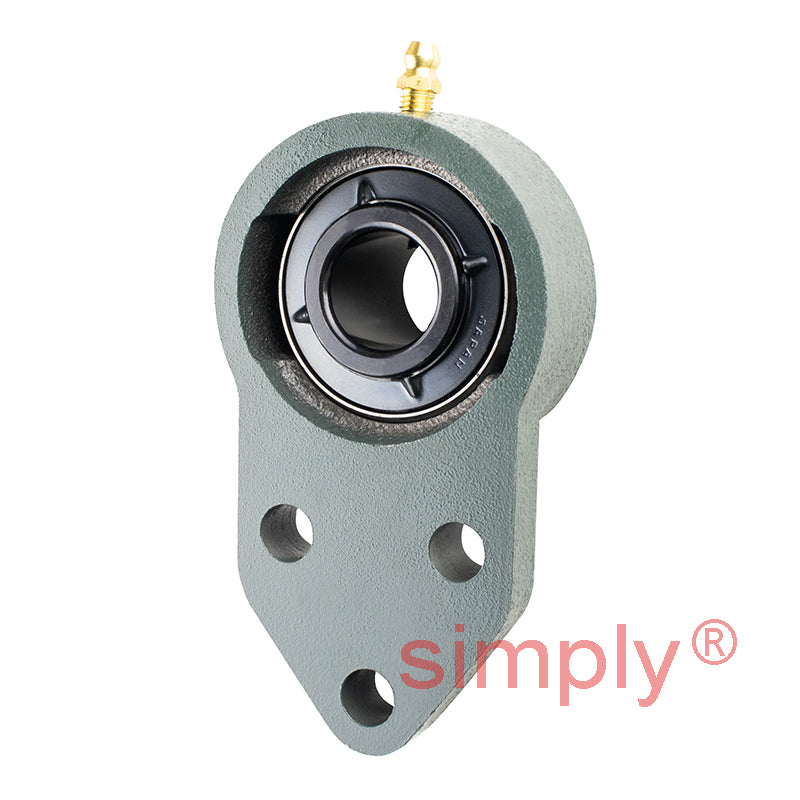

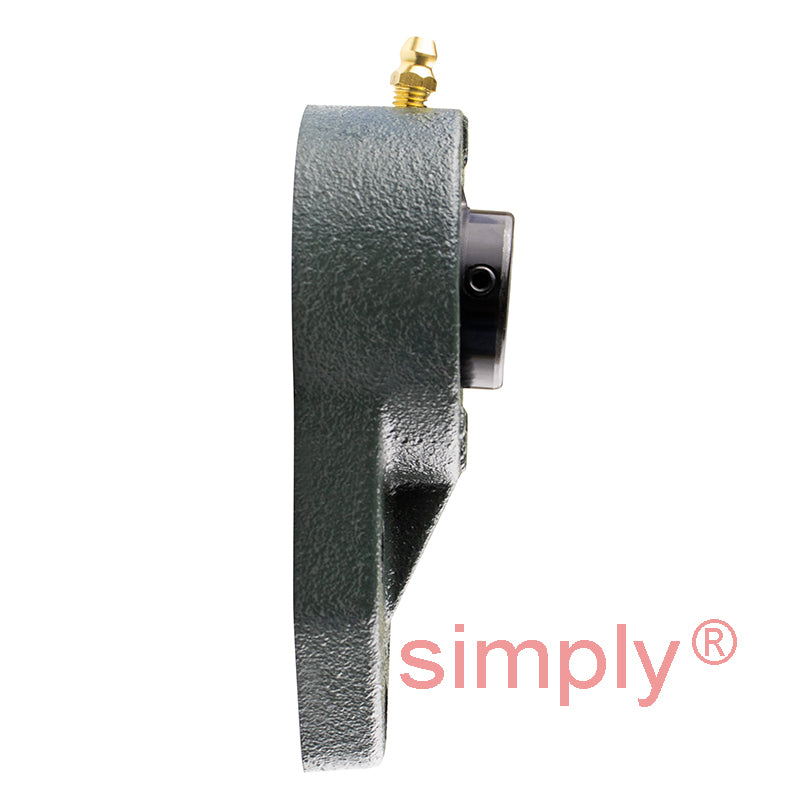

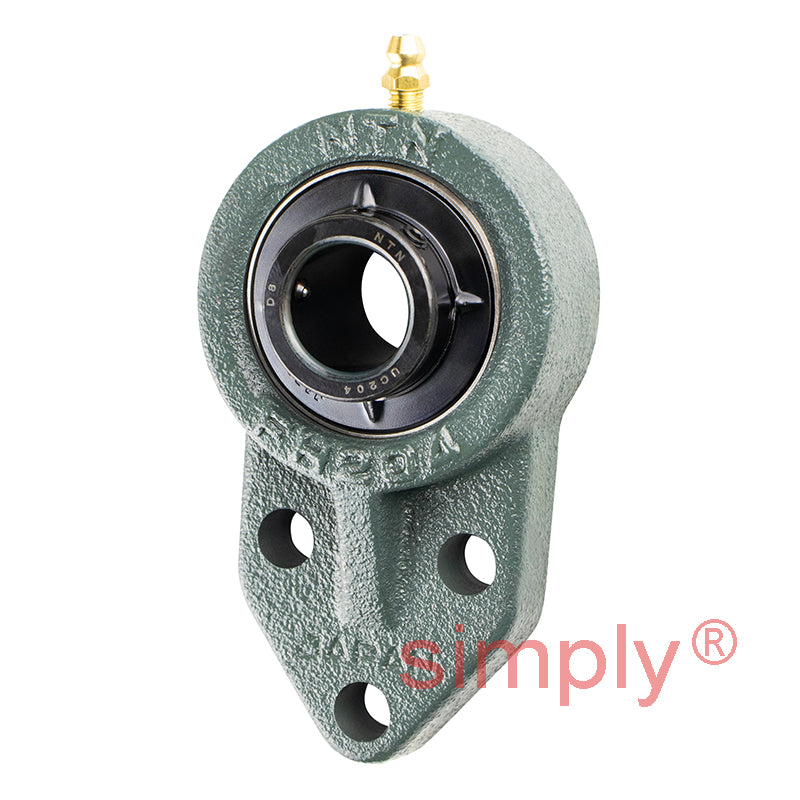

NTN M-UCFH204D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
NTN M-UCFH204D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
Regular price
Rs. 2,966.19
Regular price
Sale price
Rs. 2,966.19
Taxes included.
In stock
Price Break
10+
Rs. 2,639.91
19+
Rs. 2,491.60
29+
Rs. 2,461.94
39+
Rs. 2,432.28
49+
Rs. 2,402.61
74+
Rs. 2,372.95
99+
Rs. 2,224.64
199+
Rs. 2,194.98
249+
Rs. 2,165.32
499+
Rs. 2,135.66
999+
Rs. 2,076.33
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCFH
- Bolt Hole Centres:
- 32mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H<sub>3</sub> | 110mm |
| J | 32mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 13mm |
| A | 25.5mm |
| N | 10mm |
| H | 42mm |
| H<sub>1</sub> | 27mm |
| L<sub>1</sub> | 52mm |
| H<sub>2</sub> | 52mm |
| L | 62mm |
| A<sub>0</sub> | 33.3mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M8 |
| Mass | 0.6 kg |
