SKU: M-UCFA204D1-NTN

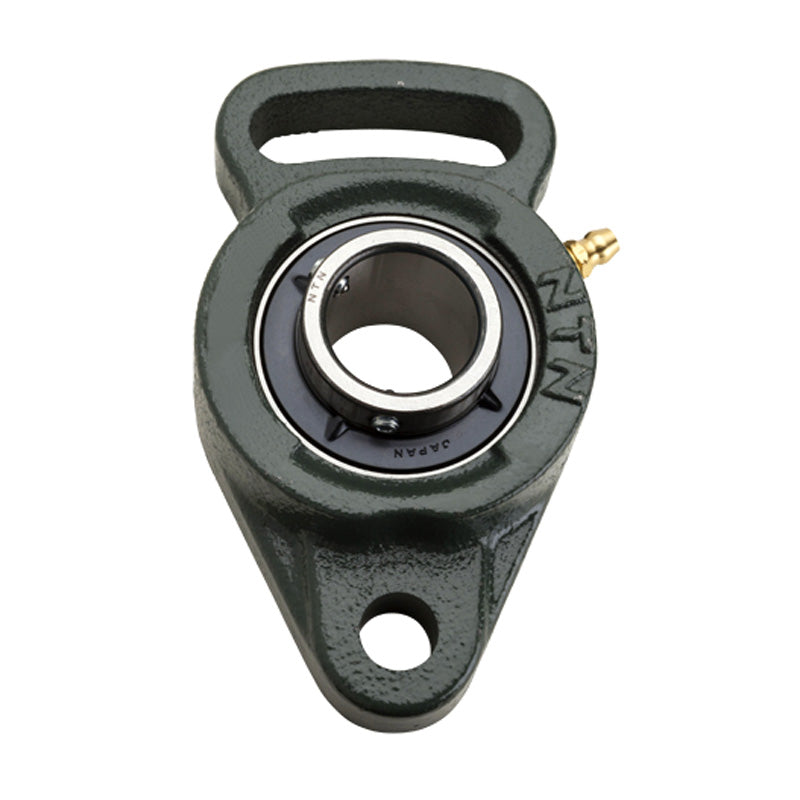

NTN M-UCFA204D1 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
NTN M-UCFA204D1 Metric Cast Iron Adjustable Flange Unit with 20mm Insert - Allow 2-3 Days
Regular price
Rs. 3,107.02
Regular price
Sale price
Rs. 3,107.02
Taxes included.
In stock
Price Break
10+
Rs. 2,765.25
19+
Rs. 2,609.90
29+
Rs. 2,578.83
39+
Rs. 2,547.76
49+
Rs. 2,516.69
74+
Rs. 2,485.62
99+
Rs. 2,330.27
199+
Rs. 2,299.19
249+
Rs. 2,268.12
499+
Rs. 2,237.05
999+
Rs. 2,174.91
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCFA
- Bolt Hole Centres:
- 78mm
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 98mm |
| J | 78mm |
| A<sub>2</sub> | 15mm |
| A<sub>1</sub> | 12mm |
| A | 25.5mm |
| N | 10mm |
| N<sub>1</sub> | 40mm |
| L | 60mm |
| L<sub>1</sub> | 50mm |
| A<sub>0</sub> | 33.3mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M8 |
| Mass | 0.5 kg |
