SKU: M-UCC210D1-NTN
NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
NTN M-UCC210D1 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 120mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 6,609.61
Regular price
Sale price
Rs. 6,609.61
Taxes included.
In stock
Price Break
10+
Rs. 5,882.55
19+
Rs. 5,552.07
29+
Rs. 5,485.98
39+
Rs. 5,419.88
49+
Rs. 5,353.78
74+
Rs. 5,287.69
99+
Rs. 4,957.21
199+
Rs. 4,891.11
249+
Rs. 4,825.02
499+
Rs. 4,758.92
999+
Rs. 4,626.73
Description
Description

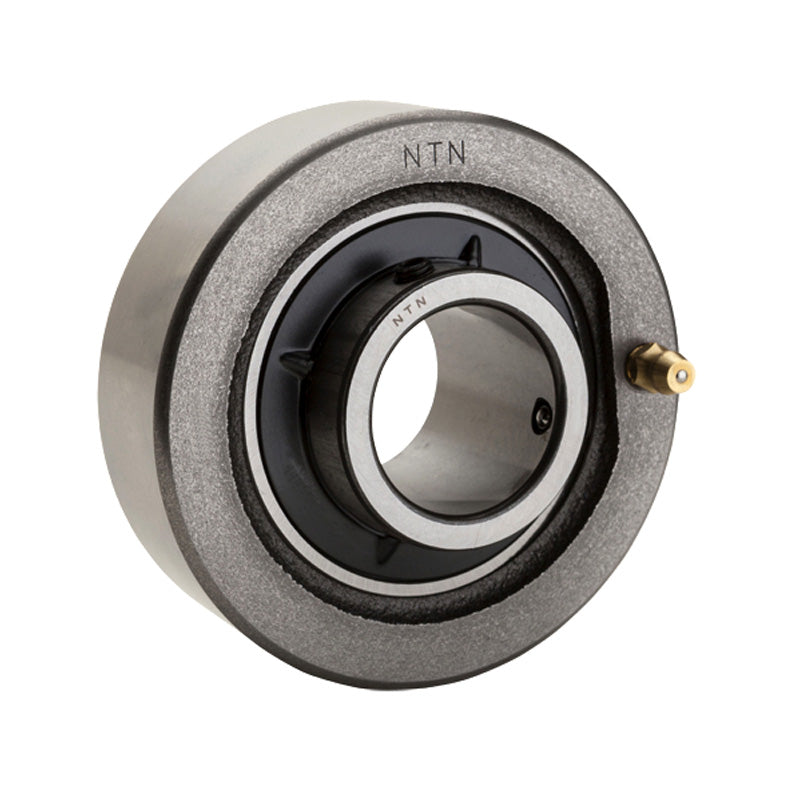

UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 120mm |
| A | 33mm |
| r | 2.5mm |
| B | 51.6mm |
| S | 19mm |
| Mass | 1.9 kg |
