SKU: M-UCC209D1-NTN

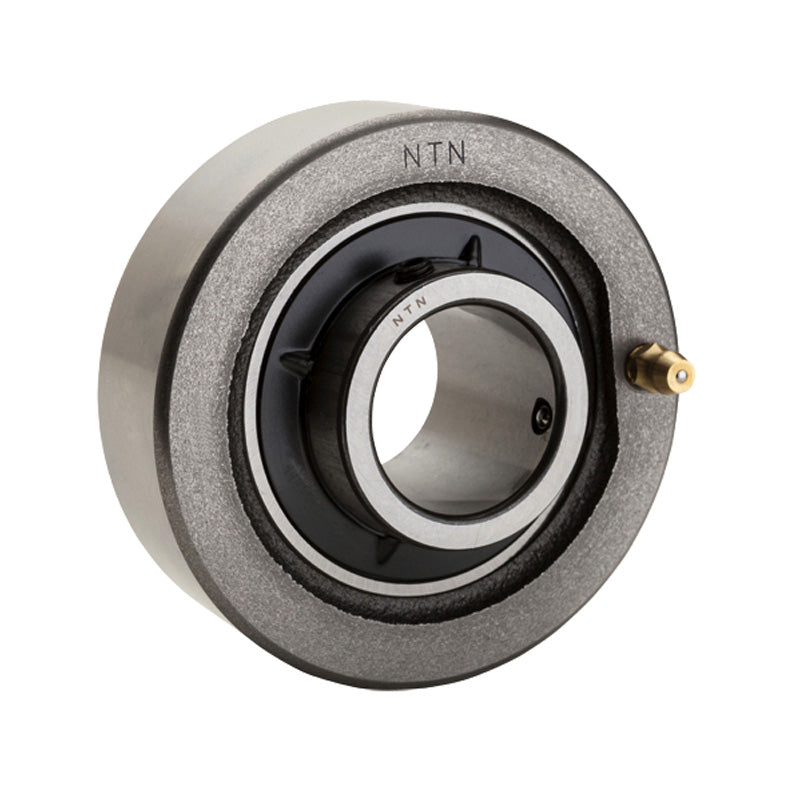

NTN M-UCC209D1 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
NTN M-UCC209D1 Metric Cast Iron Cartridge Unit with 45mm Bore Insert 110mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 7,092.24
Regular price
Sale price
Rs. 7,092.24
Taxes included.
In stock
Price Break
5+
Rs. 7,021.32
10+
Rs. 6,737.63
20+
Rs. 6,595.78
50+
Rs. 6,383.02
100+
Rs. 6,241.17
500+
Rs. 5,886.56
1000+
Rs. 4,964.57
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 45mm |
|---|---|
| H | 110mm |
| A | 31mm |
| r | 2.5mm |
| B | 49.2mm |
| S | 19mm |
| Mass | 1.5 kg |
