SKU: M-UCC205D1-NTN

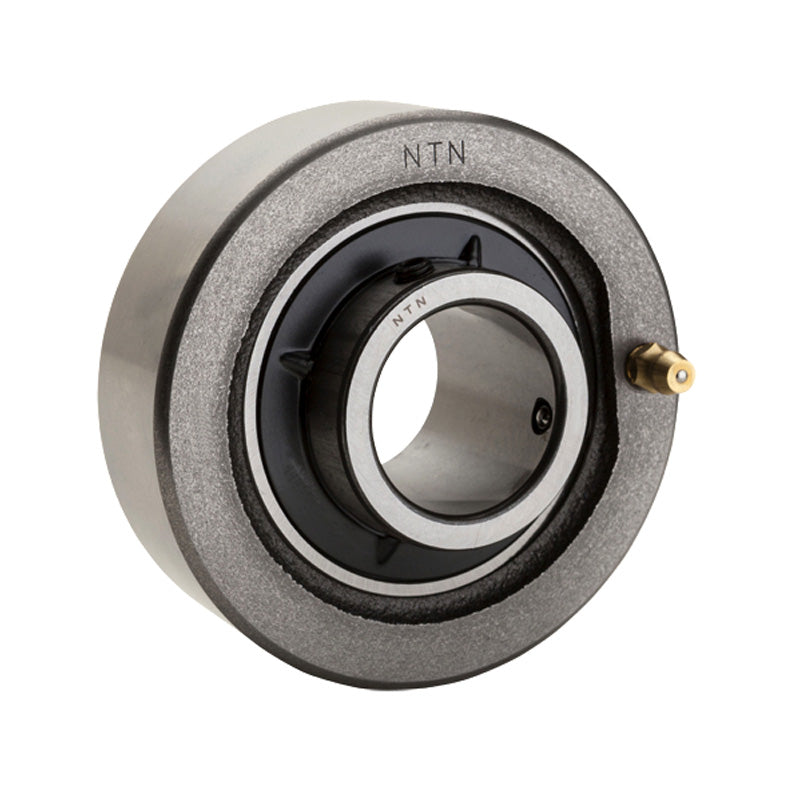

NTN M-UCC205D1 Metric Cast Iron Cartridge Unit with 25mm Bore Insert 80mm Outside Dia - Allow 2-3 Days
NTN M-UCC205D1 Metric Cast Iron Cartridge Unit with 25mm Bore Insert 80mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 3,969.86
Regular price
Sale price
Rs. 3,969.86
Taxes included.
In stock
Price Break
5+
Rs. 3,930.16
10+
Rs. 3,771.37
20+
Rs. 3,691.97
50+
Rs. 3,572.87
100+
Rs. 3,493.48
500+
Rs. 3,294.98
1000+
Rs. 2,778.90
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 80mm |
| A | 22mm |
| r | 2mm |
| B | 34.1mm |
| S | 14.3mm |
| Mass | 0.6 kg |
