SKU: M-UCC204D1-NTN

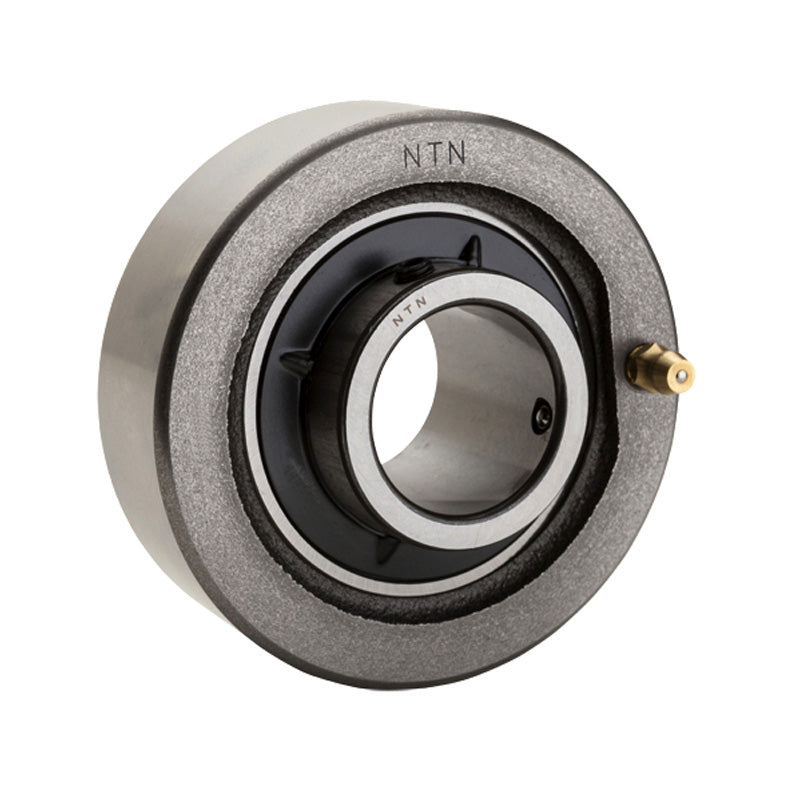

NTN M-UCC204D1 Metric Cast Iron Cartridge Unit with 20mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
NTN M-UCC204D1 Metric Cast Iron Cartridge Unit with 20mm Bore Insert 72mm Outside Dia - Allow 2-3 Days
Regular price
Rs. 3,401.46
Regular price
Sale price
Rs. 3,401.46
Taxes included.
In stock
Price Break
5+
Rs. 3,367.45
10+
Rs. 3,231.39
20+
Rs. 3,163.36
50+
Rs. 3,061.31
100+
Rs. 2,993.28
500+
Rs. 2,823.21
1000+
Rs. 2,381.02
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 20mm |
|---|---|
| H | 72mm |
| A | 20mm |
| r | 2mm |
| B | 31mm |
| S | 12.7mm |
| Mass | 0.5 kg |
