SKU: M-ASPF204-NTN

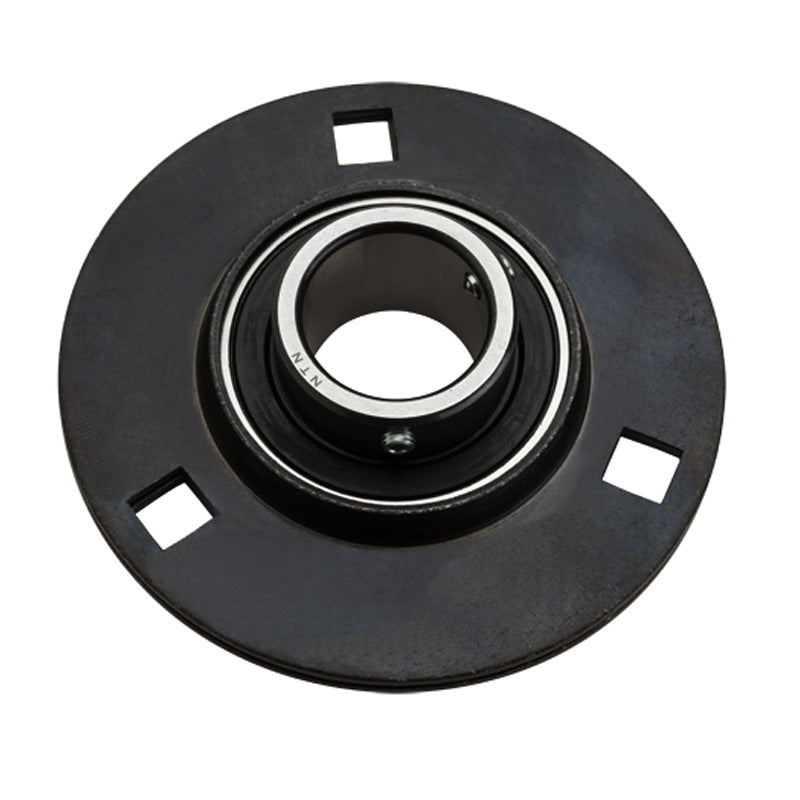

NTN M-ASPF204 Round 3 Bolt Pressed Steel Bearing Housing with 20mm Insert - Allow 2-3 Days
NTN M-ASPF204 Round 3 Bolt Pressed Steel Bearing Housing with 20mm Insert - Allow 2-3 Days
Regular price
Rs. 1,948.45
Regular price
Sale price
Rs. 1,948.45
Taxes included.
In stock
Price Break
10+
Rs. 1,734.12
19+
Rs. 1,636.70
29+
Rs. 1,617.21
39+
Rs. 1,597.73
49+
Rs. 1,578.24
74+
Rs. 1,558.76
99+
Rs. 1,461.34
199+
Rs. 1,441.85
249+
Rs. 1,422.37
499+
Rs. 1,402.88
999+
Rs. 1,363.92
Description
Description
|
3 Bolt Round Pressed Steel Bearing Housings: Of galvanized steel construction these housings are a simple economical housed bearing solution. Designed for light to medium duty applications they can be bolted to sheet metal frameworks or even timber if required. The supplied sealed bearing insert has grub screws for securing to the shaft. Once assembled the bearing remains rigid in the housing. The inserts are also available separately. Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing Note: Bearing units of 40mm / 1-1/2 or larger have 4 bolt holes |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- ASPF
- Pitch Circle Diameter:
- 71.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| H | 90mm |
| J | 71.5mm |
| A<sub>1</sub> | 4mm |
| N | 9mm |
| A | 16mm |
| B | 25mm |
| S | 7mm |
| H<sub>1</sub> min | 56mm |
| Fixing bolt | M8 |
| --- | Load rating |
| Max load recommended radial | 3000 N |
| Max load recommended axial | 1500 N |
| --- | Unit information |
| Mass | 0.2 kg |
