SKU: M-ASFB205D1-NTN

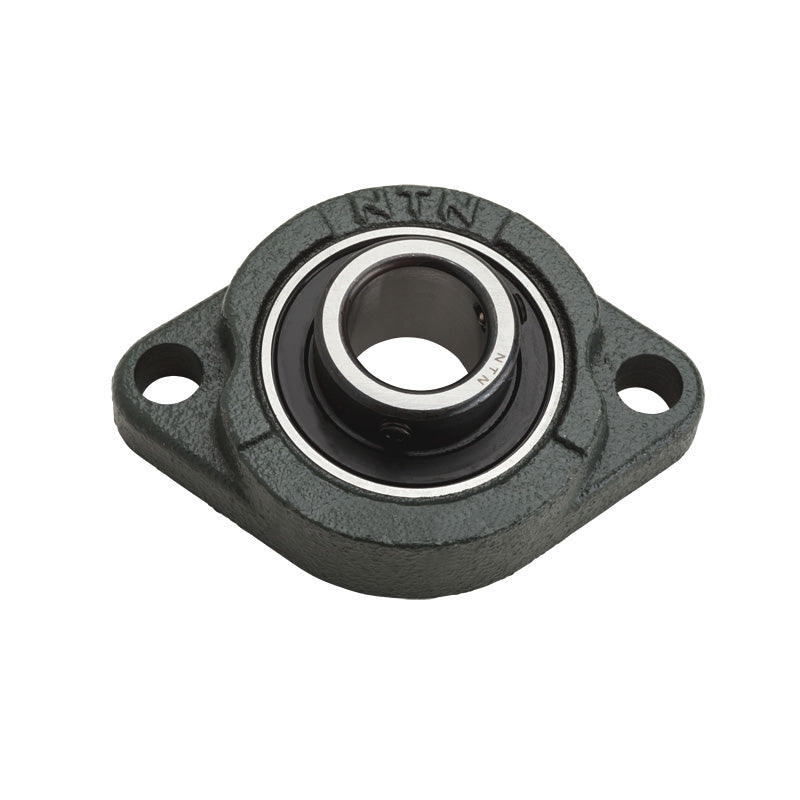

NTN M-ASFB205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
NTN M-ASFB205D1 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 2,966.19
Regular price
Sale price
Rs. 2,966.19
Taxes included.
In stock
Price Break
10+
Rs. 2,639.91
19+
Rs. 2,491.60
29+
Rs. 2,461.94
39+
Rs. 2,432.28
49+
Rs. 2,402.61
74+
Rs. 2,372.95
99+
Rs. 2,224.64
199+
Rs. 2,194.98
249+
Rs. 2,165.32
499+
Rs. 2,135.66
999+
Rs. 2,076.33
Description
Description
ASFB200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- ASFB
- Bolt Hole Centres:
- 76mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 95mm |
| J | 76mm |
| A<sub>2</sub> | 11mm |
| A<sub>1</sub> | 11mm |
| A | 20mm |
| N | 10mm |
| L | 64mm |
| A<sub>0</sub> | 30.5mm |
| B | 27mm |
| S | 7.5mm |
| Fixing bolt | M8 |
| Mass | 0.3 kg |
