SKU: LRB.566432

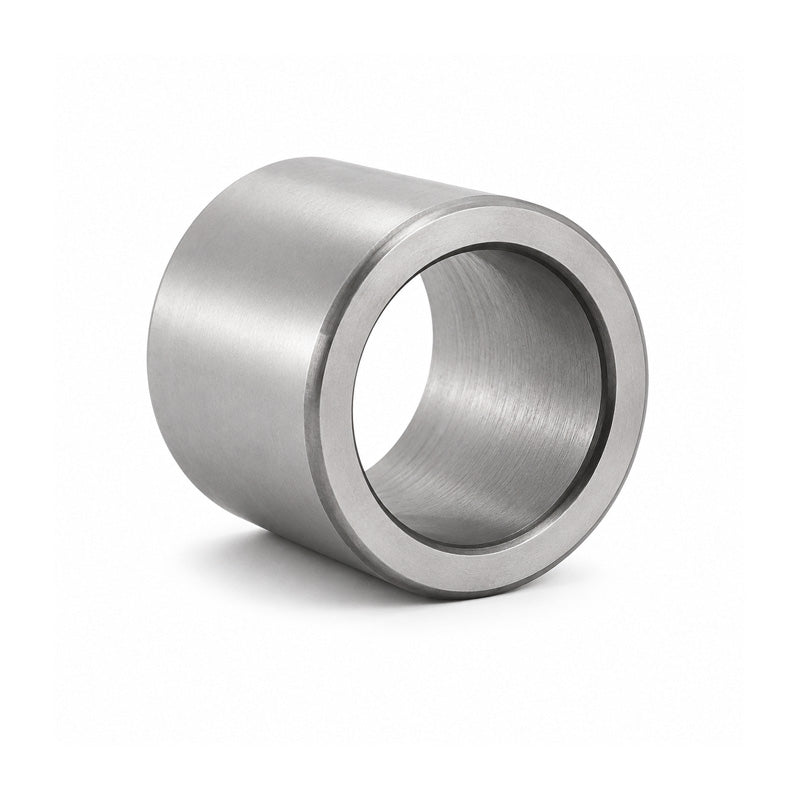

LRB566432 Imperial Needle Roller Inner Race 3-1/2x4x51.05
LRB566432 Imperial Needle Roller Inner Race 3-1/2x4x51.05
Regular price
Rs. 7,129.75
ex VAT
Regular price
Sale price
Rs. 7,129.75
ex VAT
Equivalent to: IR566432 MI56 IR9688C
In stock
Price Break
10+
Rs. 6,345.48
19+
Rs. 5,988.99
29+
Rs. 5,917.69
39+
Rs. 5,846.40
49+
Rs. 5,775.10
74+
Rs. 5,703.80
99+
Rs. 5,347.31
199+
Rs. 5,276.02
249+
Rs. 5,204.72
499+
Rs. 5,133.42
999+
Rs. 4,990.83
Couldn't load pickup availability
Description
Description
|
Imperial Inner Rings:Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. LRB and LRBZ..B types are provided with an oil hole for lubrication. Benefits: Hardened and ground, precision component, lead in for easier assembly. |
Equivalent: IR566432 MI56 IR9688C
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Outside Diameter:
- 101.6mm = 4 inch
- Width:
- 51.05mm
Technical
Technical
| d | 3-1/2 inch |
|---|---|
| F | 4 inch |
| B | 51.05mm |
| Weight | 0.75kg |
