SKU: LR604-2RSR-INA

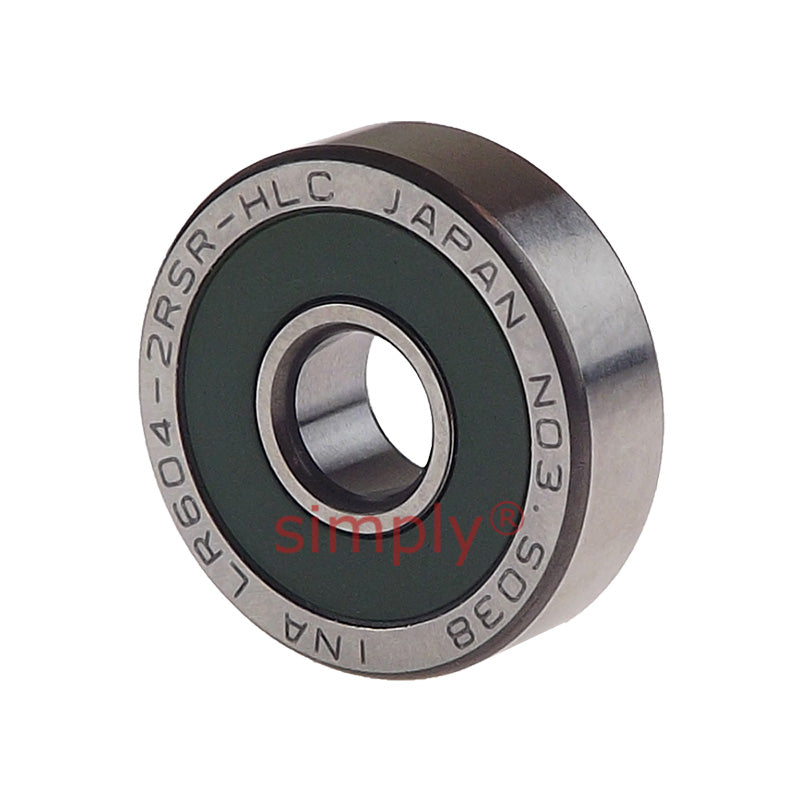

INA LR6042RSR Rubber Sealed Track Roller with Crowned Outer Race 4x13x4mm
INA LR6042RSR Rubber Sealed Track Roller with Crowned Outer Race 4x13x4mm
Regular price
Rs. 2,689.67
Regular price
Sale price
Rs. 2,689.67
Taxes included.
Equivalent to: LR604-2RSR LR604-NPPU LR6042RS LR604NPPU
In stock
Price Break
10+
Rs. 2,393.81
19+
Rs. 2,259.32
29+
Rs. 2,232.43
39+
Rs. 2,205.53
49+
Rs. 2,178.63
74+
Rs. 2,151.74
99+
Rs. 2,017.25
199+
Rs. 1,990.36
249+
Rs. 1,963.46
499+
Rs. 1,936.56
999+
Rs. 1,882.77
Description
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
Equivalent: LR604-2RSR LR604-NPPU LR6042RS LR604NPPU
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 13mm
- Width:
- 4mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 4mm |
|---|---|
| D | 13mm |
| C | 4mm |
| d<sub>2</sub> | 6.1mm |
| Crowning Radius (R) | 500mm |
| r<sub>min</sub> | 0.2mm |
| Mass (m) | 0.01kg |
| Dynamic Load (C<sub>r w</sub>) | 920N |
| Static Load (C0<sub>r w</sub>) | 350N |
| Fatigue Limit Load (C<sub>ur w</sub>) | 18.1N |
| Speed (n<sub>D G</sub>) | 2400 1/min |
