SKU: LMB.20.UU.EU

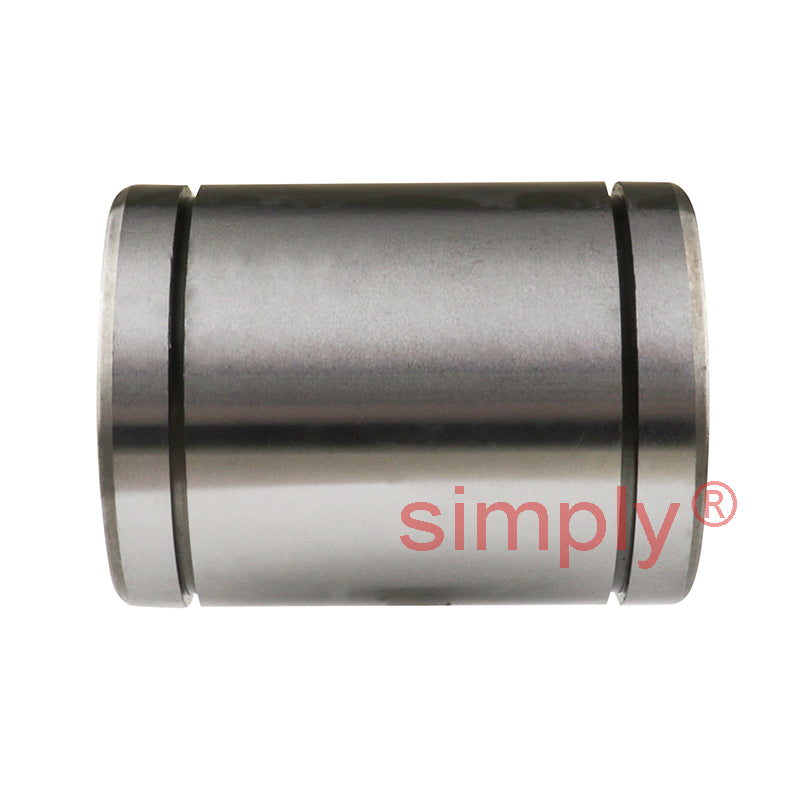

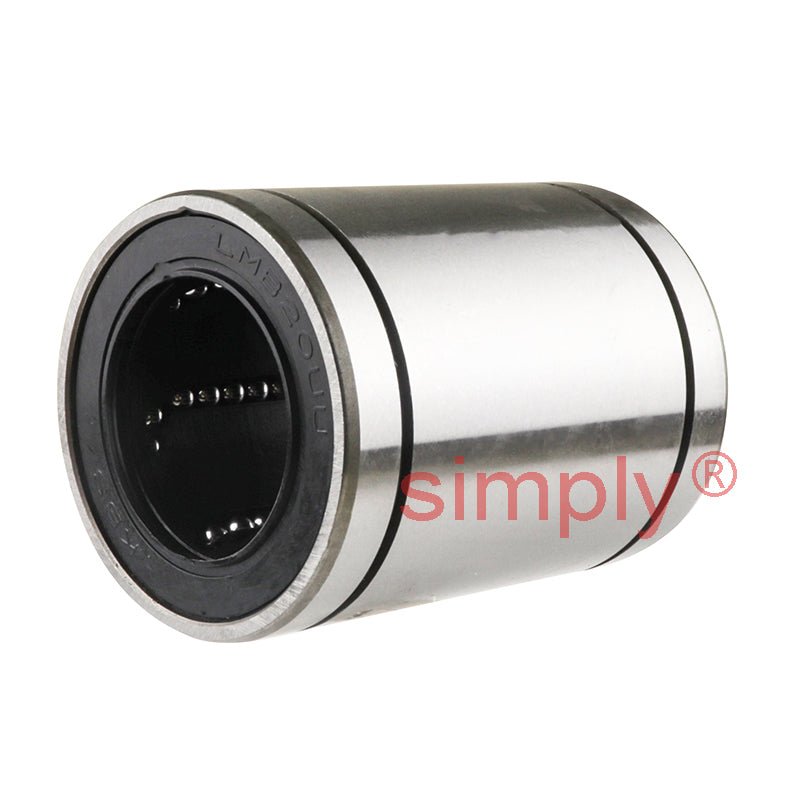

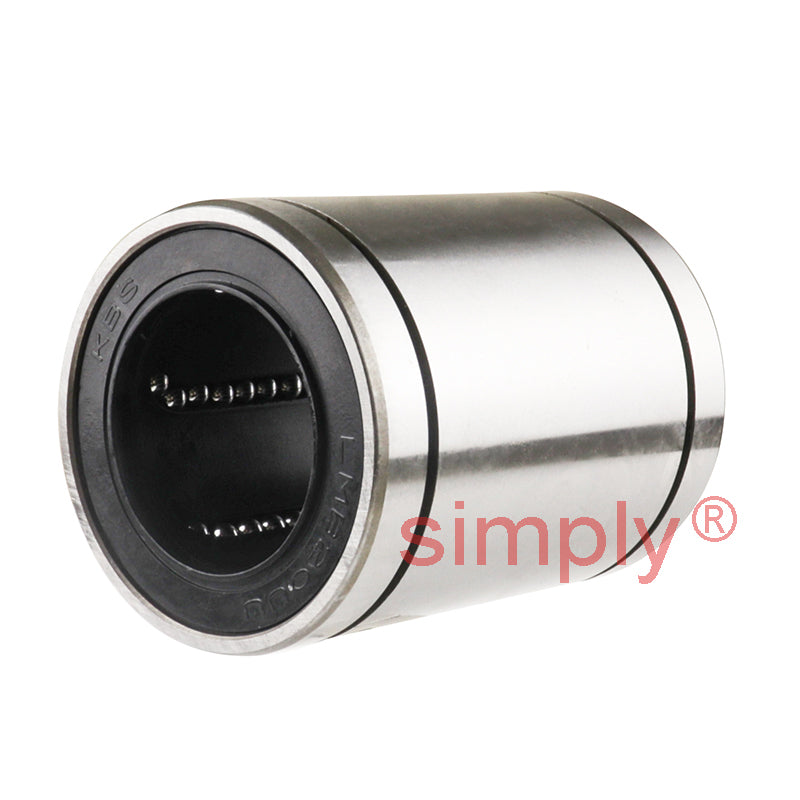

LMB20UU Imperial Closed Linear Ball Bushing with Rubber Seals 1.25x2x2.625 inch
In stock
Price Break
Couldn't load pickup availability
Description
LMB Imperial Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 50.8mm = 2 inch
- Length:
- 66.68mm = 2.625 (2-5/8) inch
Technical
| Inside Diameter dr | 1.25 inch Tol - 0 to + 8µm |
|---|---|
| Outside Diameter D | 2 inch Tol - 0 to + 19µm |
| Length L | 2.625 inch Tol - 0 to + 300µm |
| W | 0.0679 inch |
| D1 | 0.0679 inch |
| B | 2.0047 inch |
| Eccentricity | 12 to 20µm |
| Dynamic load C | 160 kgf |
| Static load C<sub>o</sub> | 279 kgf |
| Weight | 465 g |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
