SKU: LM.E.5.UU.EU

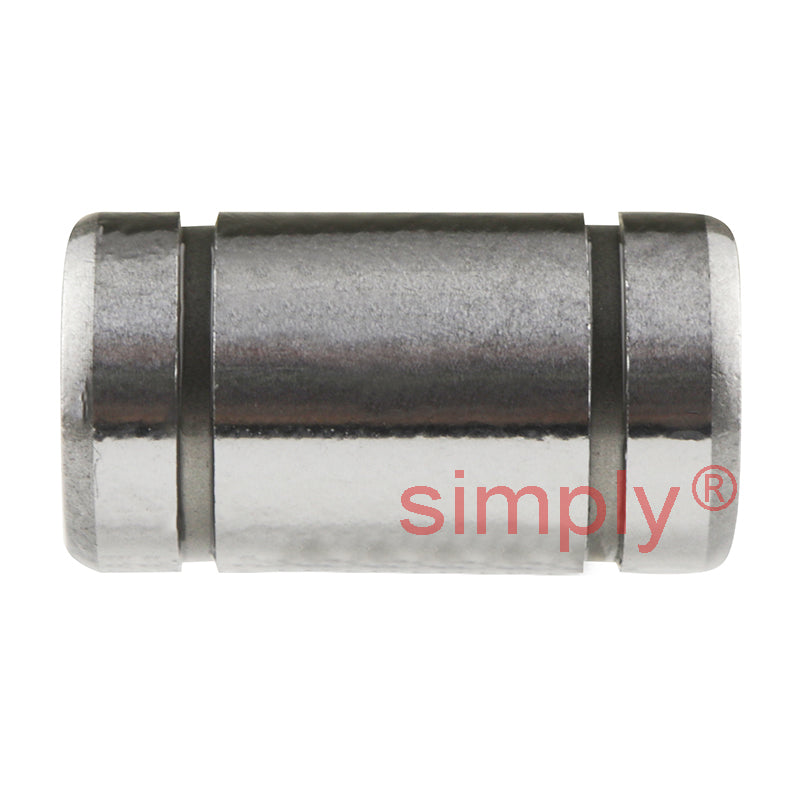

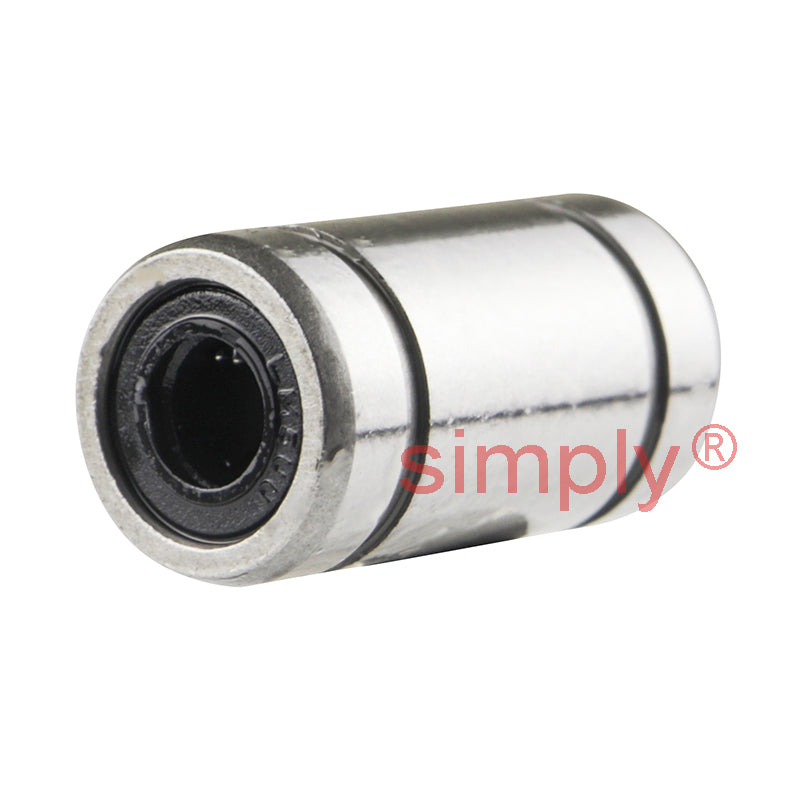

LME5UU Closed Linear Ball Bushing with Rubber Seals 5x12x22mm
Equivalent to: KB5GUU LBE5UU
In stock
Price Break
Couldn't load pickup availability
Description
LME European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: KB5GUU LBE5UU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 12mm
- Length:
- 22mm
Technical
| Inside Diameter dr | 5mm Tol +8 to - 0µm |
|---|---|
| Outside Diameter D | 12mm Tol + 0 to - 200µm |
| Length L | 22mm Tol + 0 to - 200µm |
| W | 1.1mm |
| D1 | 11.5mm |
| B | 14.5mm |
| Eccentricity | 12µm |
| Dynamic load C | 12 kgf |
| Static load C<sub>o</sub> | 22 kgf |
| Weight | 11 g |
| Number of ball rows | 3 |
| Tolerances dr & D | Apply to closed type only |
