SKU: LM.E.40.UU.EU

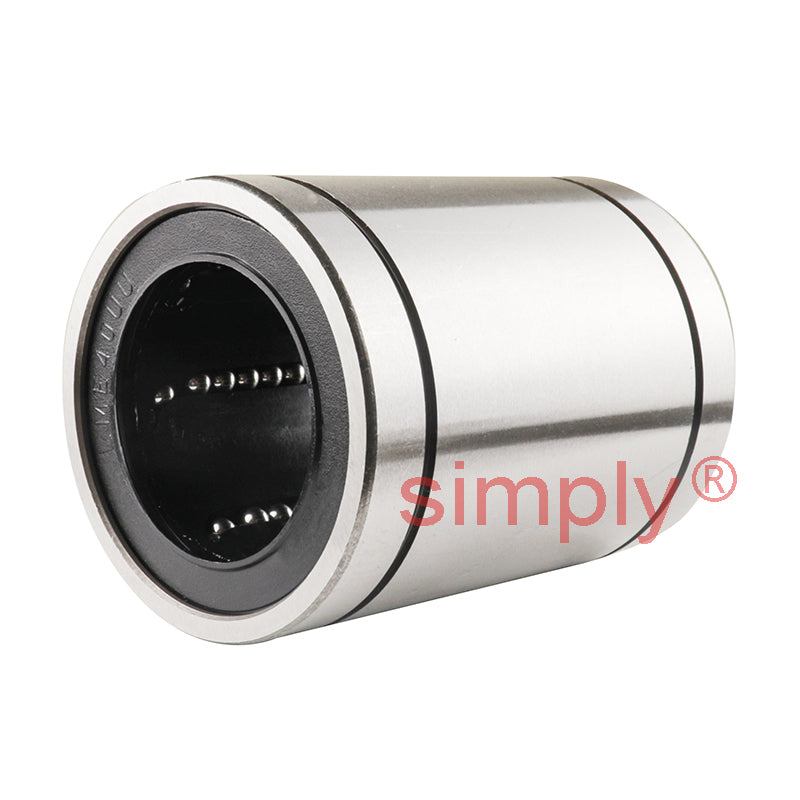

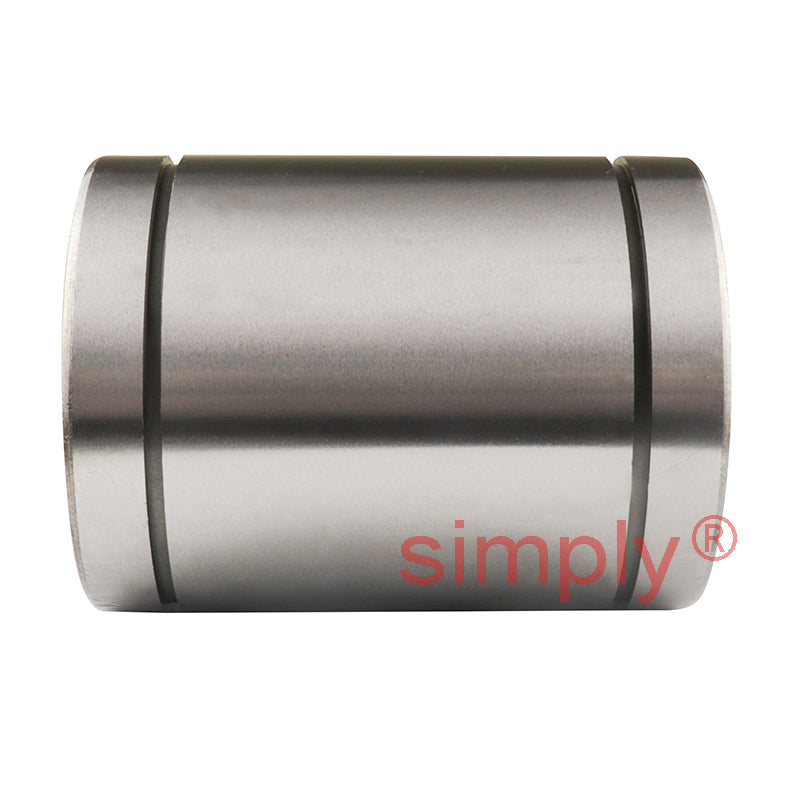

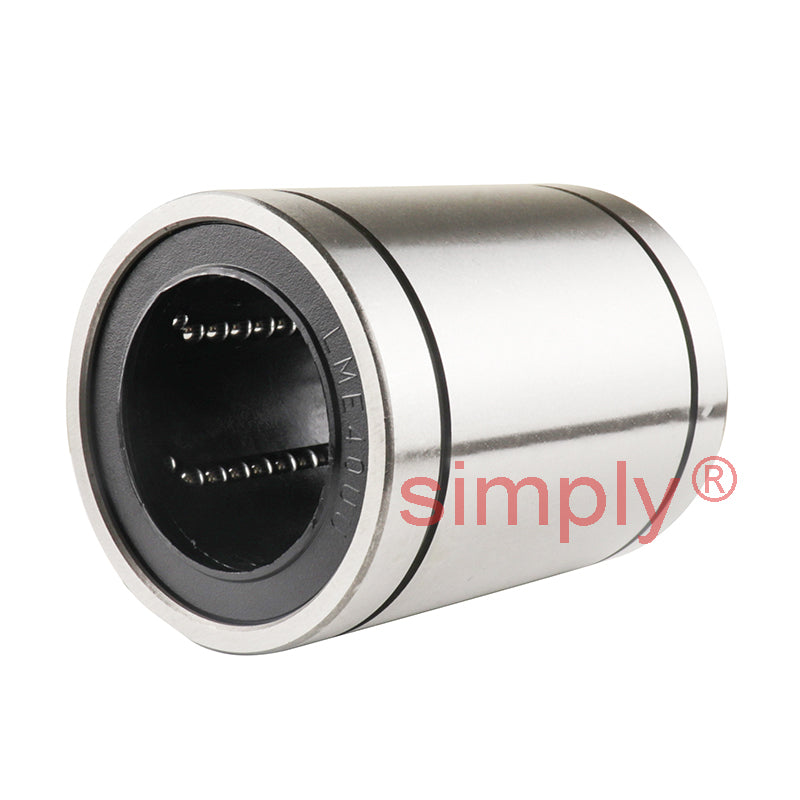

LME40UU Closed Linear Ball Bushing with Rubber Seals 40x62x80mm
Equivalent to: KB40GUU KB4080PP MAM40WW LBE40UU
In stock
Price Break
Couldn't load pickup availability
Description
LME European Metric Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: KB40GUU KB4080PP MAM40WW LBE40UU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Length:
- 80mm
Technical
| Inside Diameter dr | 40mm Tol +13 to - 2µm |
|---|---|
| Outside Diameter D | 62mm Tol + 0 to - 300µm |
| Length L | 80mm Tol + 0 to - 300µm |
| W | 2.15mm |
| D1 | 59mm |
| B | 60.6mm |
| Eccentricity | 17µm |
| Dynamic load C | 235 kgf |
| Static load C<sub>o</sub> | 450 kgf |
| Weight | 705 g |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
