SKU: LM.50.UU.EU

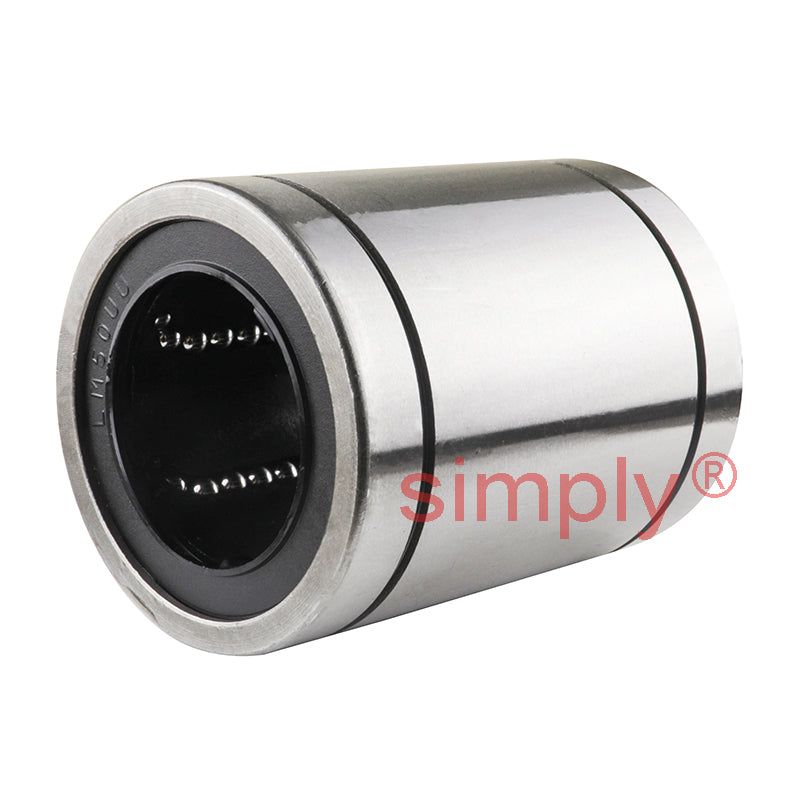

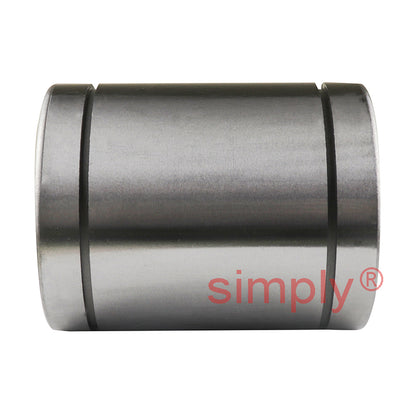

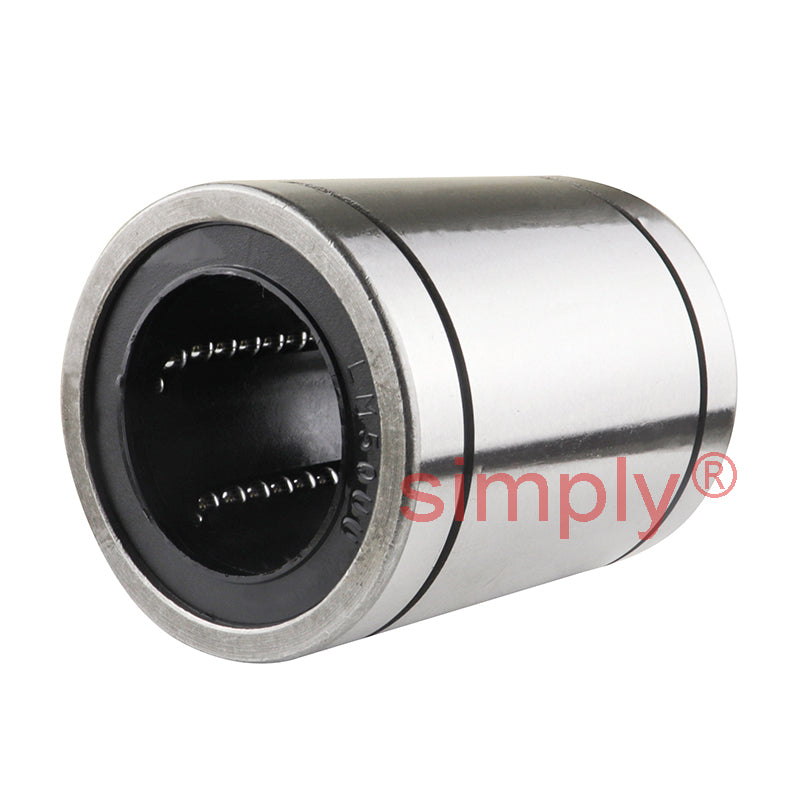

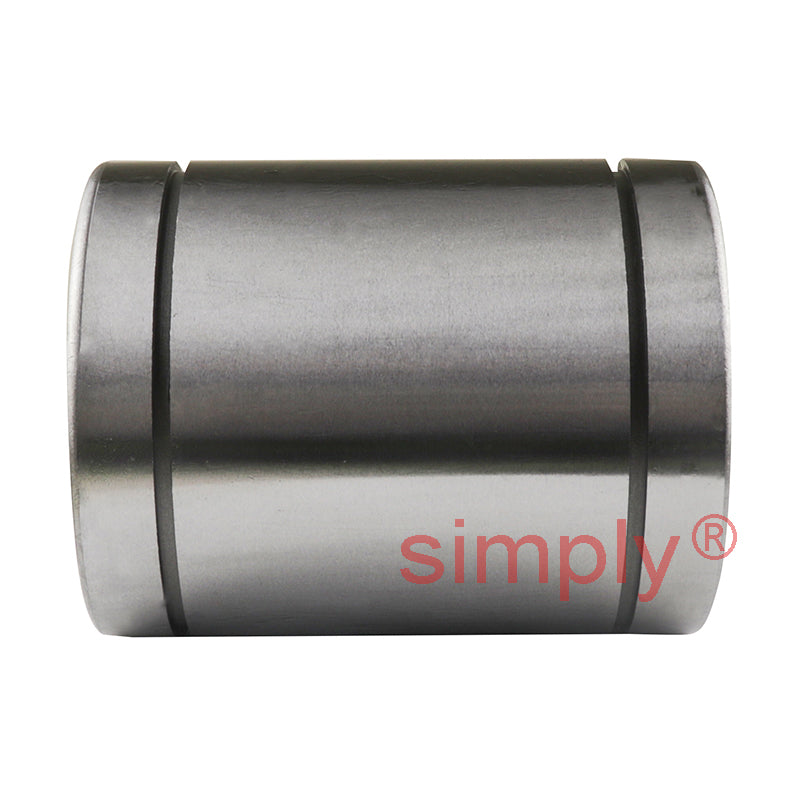

LM50UU Closed Linear Ball Bushing with Rubber Seals 50x80x100mm
Equivalent to: SM50GUU LBD50UU LB50NYDD N50HVUU L50BUU TB50UU SDM50YUU
In stock
Price Break
Couldn't load pickup availability
Description
LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: SM50GUU LBD50UU LB50NYDD N50HVUU L50BUU TB50UU SDM50YUU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Length:
- 100mm
Technical
| Inside Diameter dr | 50mm Tol + 0 to - 8µm |
|---|---|
| Outside Diameter D | 80mm Tol + 0 to - 17µm |
| Length L | 100mm Tol + 0 to - 300µm |
| W | 2.6mm |
| D1 | 76.5mm |
| Eccentricity | 12µm |
| Dynamic load C | 450 kgf |
| Static load C<sub>o</sub> | 730 kgf |
| Weight | 1580 g |
| B | 74mm Tol + 0 to - 300µm |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
