SKU: LM.25.UU.EU

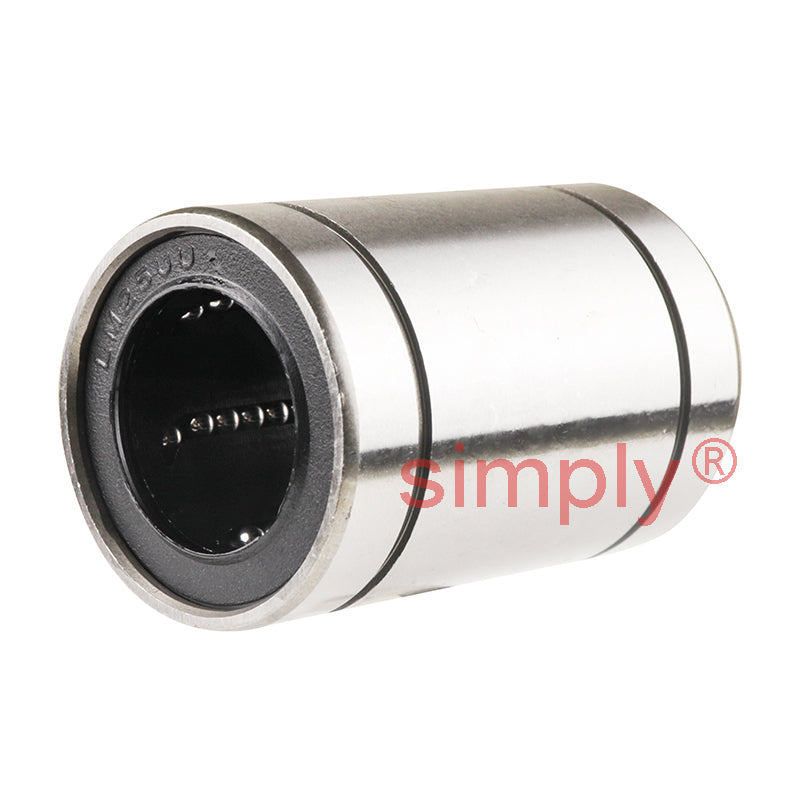

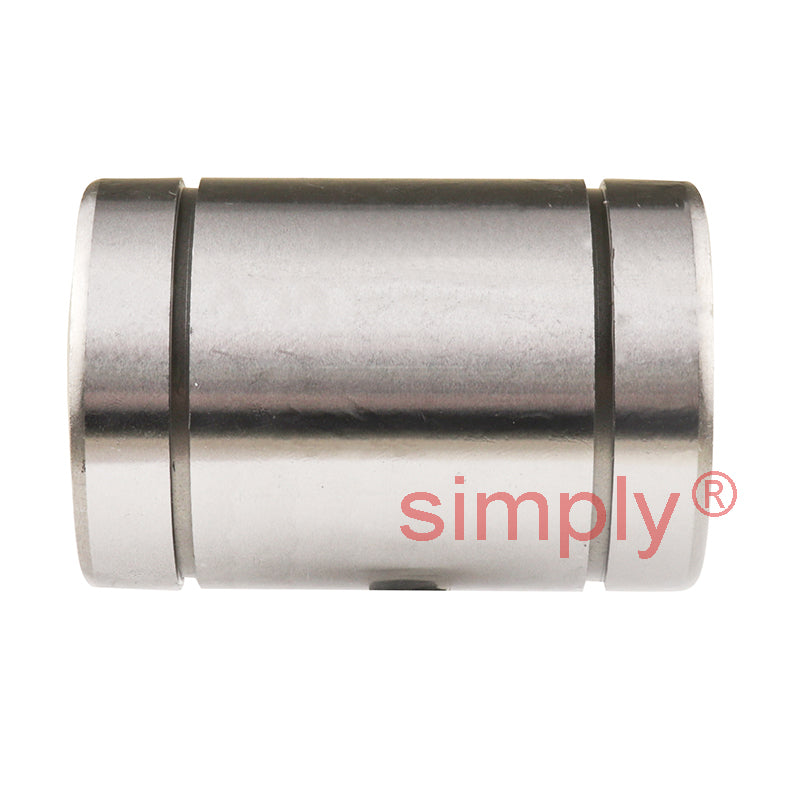

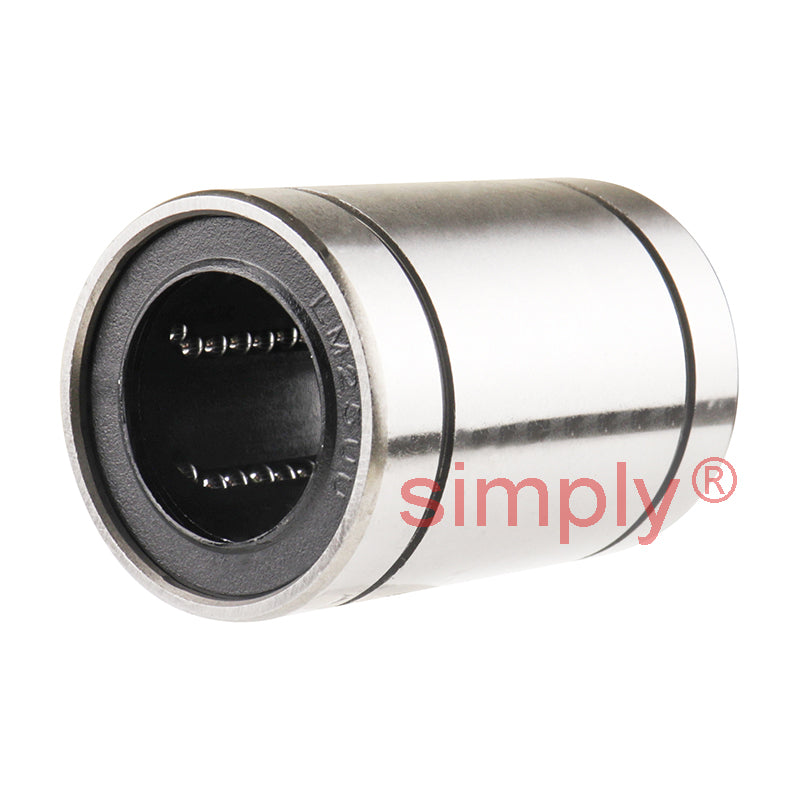

LM25UU Closed Linear Ball Bushing with Rubber Seals 25x40x59mm
Equivalent to: SM25GUU LBD25UU LB25NYDD N25BVUU L25BUU TB25UU KLM25LL SDM25YUU
In stock
Price Break
Couldn't load pickup availability
Description
LM Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: SM25GUU LBD25UU LB25NYDD N25BVUU L25BUU TB25UU KLM25LL SDM25YUU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Length:
- 59mm
Technical
| Inside Diameter dr | 25mm Tol + 0 to - 7µm |
|---|---|
| Outside Diameter D | 40mm Tol + 0 to - 14µm |
| Length L | 59mm Tol + 0 to - 300µm |
| W | 1.85mm |
| D1 | 38mm |
| Eccentricity | 10µm |
| Dynamic load C | 105 kgf |
| Static load C<sub>o</sub> | 185 kgf |
| Weight | 220 g |
| B | 41mm Tol + 0 to - 300µm |
| Number of ball rows | 6 |
| Tolerances dr & D | Apply to closed type only |
