SKU: LJ.1.NR.EU

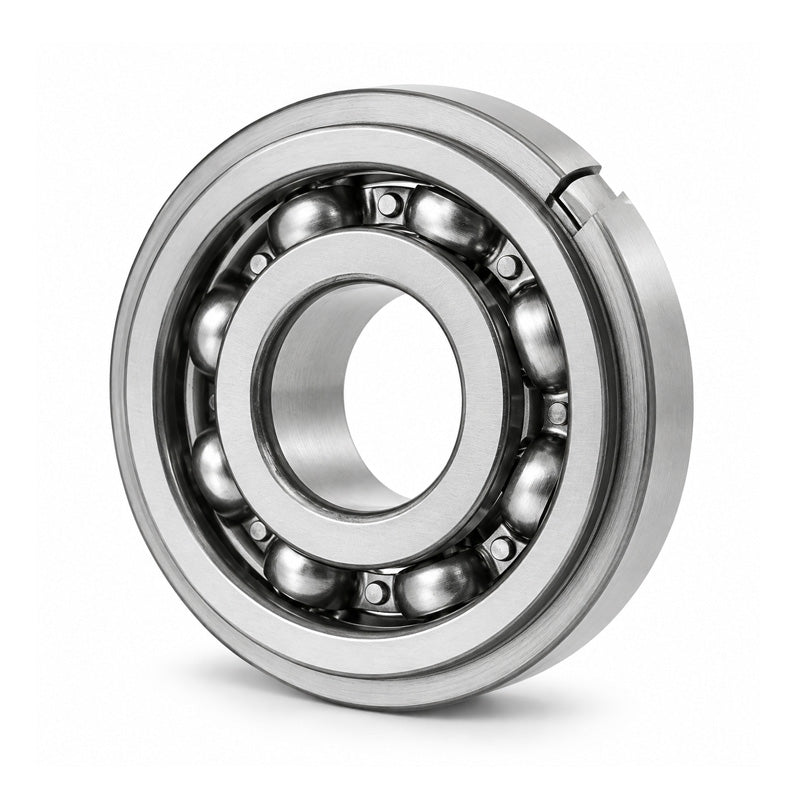

LJ1NR Imperial Open Snap Ring Bearing 1x2-1/4x5/8 inch
LJ1NR Imperial Open Snap Ring Bearing 1x2-1/4x5/8 inch
Regular price
Rs. 830.75
ex VAT
Regular price
Sale price
Rs. 830.75
ex VAT
Equivalent to: RLS8NR
In stock
Price Break
10+
Rs. 739.37
19+
Rs. 697.83
29+
Rs. 689.52
39+
Rs. 681.22
49+
Rs. 672.91
74+
Rs. 664.60
99+
Rs. 623.06
199+
Rs. 614.76
249+
Rs. 606.45
499+
Rs. 598.14
999+
Rs. 581.53
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: RLS8NR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore (d) | 1 inch |
|---|---|
| Outside Diameter (D) | 2.25 inch |
| Width (B) | 0.625 inch |
| Dynamic Load Rating | 18600 N |
| Static Load Rating | 9700 N |
| Limiting Speed (Grease) | 12700 rpm |
| Limiting Speed (Oil) | 17000 rpm |
| Weight | 0.169 kg |
