SKU: LJ.1-1/4.NR.EU

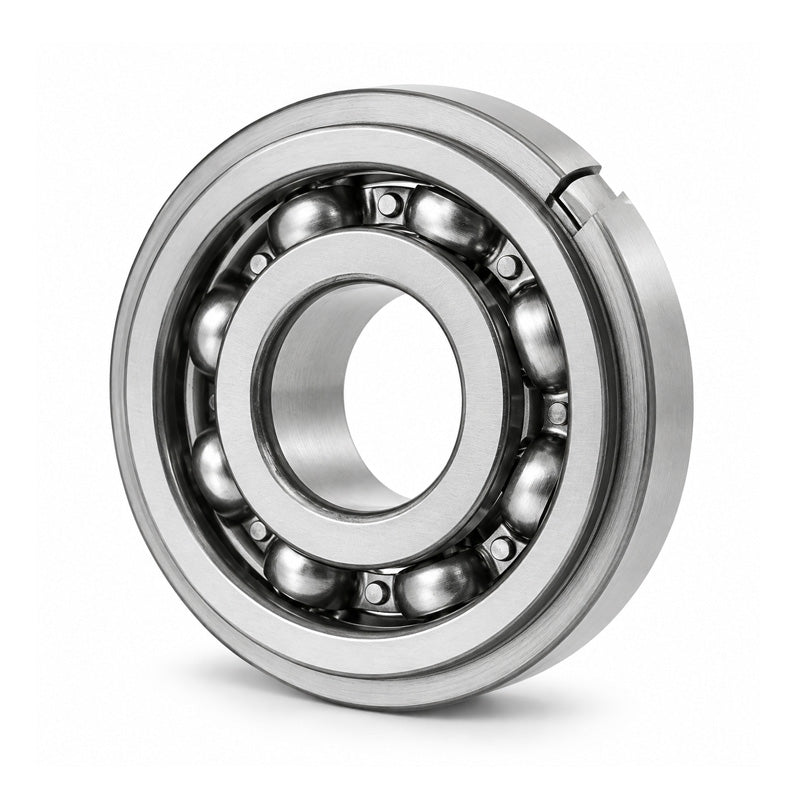

LJ1-1/4NR Imperial Open Snap Ring Bearing 1-1/4x2-3/4x11/16 inch
LJ1-1/4NR Imperial Open Snap Ring Bearing 1-1/4x2-3/4x11/16 inch
Regular price
Rs. 2,451.72
ex VAT
Regular price
Sale price
Rs. 2,451.72
ex VAT
Equivalent to: RLS10NR LS12NR
In stock
Price Break
10+
Rs. 2,182.03
19+
Rs. 2,059.44
29+
Rs. 2,034.93
39+
Rs. 2,010.41
49+
Rs. 1,985.89
74+
Rs. 1,961.38
99+
Rs. 1,838.79
199+
Rs. 1,814.27
249+
Rs. 1,789.76
499+
Rs. 1,765.24
999+
Rs. 1,716.20
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: RLS10NR LS12NR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Width:
- 17.46mm = 0.687 (11/16) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore | 1.25 inch |
|---|---|
| Outside Diameter | 2.75 inch |
| Width | 0.6875 inch |
| Weight | 0.5 kg |
