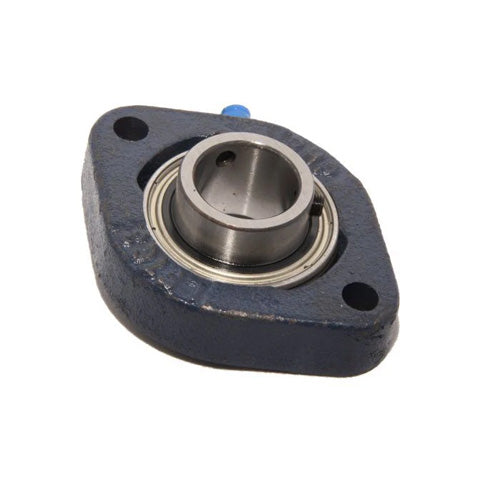

• RHP LFTC5/8 Two Bolt Oval Cast Iron Flange Housing Bearing 5/8 inch Bore
1 1

SKU: LFTC5/8-RHP

RHP LFTC5/8 Two Bolt Oval Cast Iron Flange Housing Bearing 5/8 inch Bore

RHP LFTC5/8 Two Bolt Oval Cast Iron Flange Housing Bearing 5/8 inch Bore
Rs. 4,350.08
Rs. 4,350.08
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 3,871.57
19+ Rs. 3,654.07
29+ Rs. 3,610.57
39+ Rs. 3,567.07
49+ Rs. 3,523.56
74+ Rs. 3,480.06
99+ Rs. 3,262.56
199+ Rs. 3,219.06
249+ Rs. 3,175.56
499+ Rs. 3,132.06
999+ Rs. 3,045.06
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Style:
LFTC
Bolt Hole Centres:
63.5mm = 2.5 (2-1/2) inch

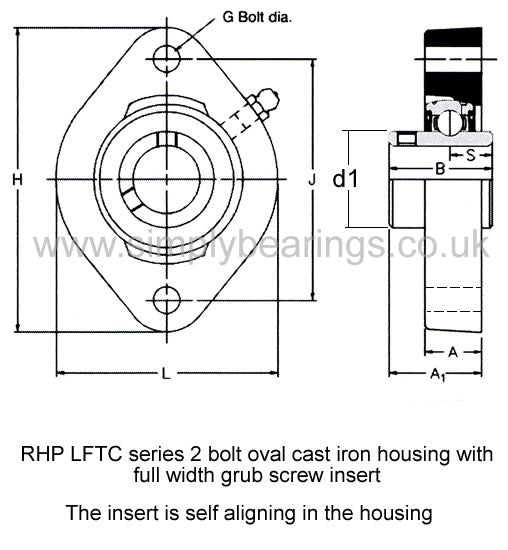

Technical
Bore 5/8 inch
L 2.303 inch
H 3.189 inch
J 2.5 inch
G 0.25 inch
A 0.59 inch
A1 0.956 inch
B 1.078 inch
s 0.455 inch
d1 0.953 inch
Dynamic load 9550 N
Static load 4800 N
Rec max speed 7000 rpm
Weight 0.3 kg
Insert <a href="advanced_search_result.php?keywords=1017-5/8G+insonly">1017-5/8G Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
