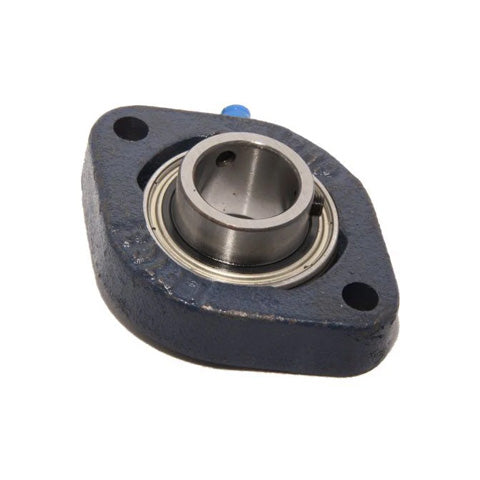

• RHP LFTC35 Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
1 1

SKU: LFTC35-RHP

RHP LFTC35 Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore

RHP LFTC35 Two Bolt Oval Cast Iron Flange Housing Bearing 35mm Bore
Rs. 6,856.69
Rs. 6,856.69
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 6,102.45
19+ Rs. 5,759.62
29+ Rs. 5,691.05
39+ Rs. 5,622.49
49+ Rs. 5,553.92
74+ Rs. 5,485.35
99+ Rs. 5,142.52
199+ Rs. 5,073.95
249+ Rs. 5,005.38
499+ Rs. 4,936.82
999+ Rs. 4,799.68
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
LFTC
Bolt Hole Centres:
100mm
Technical
Bore 35mm
L 93mm
H 125mm
J 100mm
G 10mm
A 22mm
A1 37.8mm
B 42.88mm
s 17.53mm
d1 46.69mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.1 kg
Insert <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
