• RHP LFTC30A Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
1 1

SKU: LFTC30A-RHP

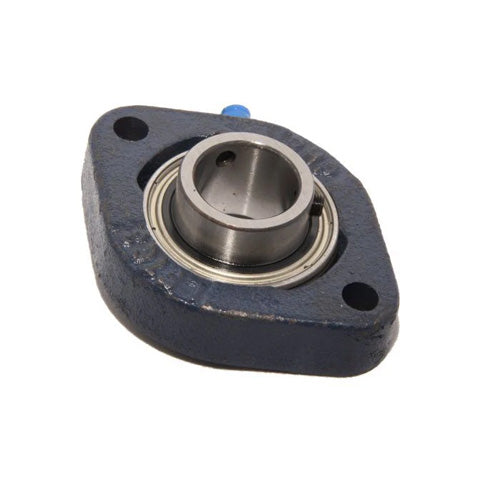

RHP LFTC30A Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore

RHP LFTC30A Two Bolt Oval Cast Iron Flange Housing Bearing 30mm Bore
Rs. 5,739.26 ex VAT
Rs. 5,739.26 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,107.94
19+ Rs. 4,820.98
29+ Rs. 4,763.59
39+ Rs. 4,706.19
49+ Rs. 4,648.80
74+ Rs. 4,591.41
99+ Rs. 4,304.45
199+ Rs. 4,247.05
249+ Rs. 4,189.66
499+ Rs. 4,132.27
999+ Rs. 4,017.48
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
LFTC
Bolt Hole Centres:
90.5mm
Technical
Bore 30mm
L 84mm
H 112mm
J 90.5mm
G 10mm
A 20.5mm
A1 33.62mm
B1 31.21mm
s1 9.04mm
d1 40mm
Dynamic load 19500 N
Static load 11300 N
Rec max speed 5300 rpm
Weight 0.8 kg
Insert <a href="advanced_search_result.php?keywords=1230-30AG+insonly">1230-30AG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
