SKU: LFTC25EC-RHP
RHP LFTC25EC Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
RHP LFTC25EC Two Bolt Oval Cast Iron Flange Housing Bearing 25mm Bore
Regular price
Rs. 5,046.55
ex VAT
Regular price
Sale price
Rs. 5,046.55
ex VAT
In stock
Price Break
10+
Rs. 4,491.43
19+
Rs. 4,239.10
29+
Rs. 4,188.64
39+
Rs. 4,138.17
49+
Rs. 4,087.71
74+
Rs. 4,037.24
99+
Rs. 3,784.91
199+
Rs. 3,734.45
249+
Rs. 3,683.98
499+
Rs. 3,633.52
999+
Rs. 3,532.59
Couldn't load pickup availability
Description
Description
|

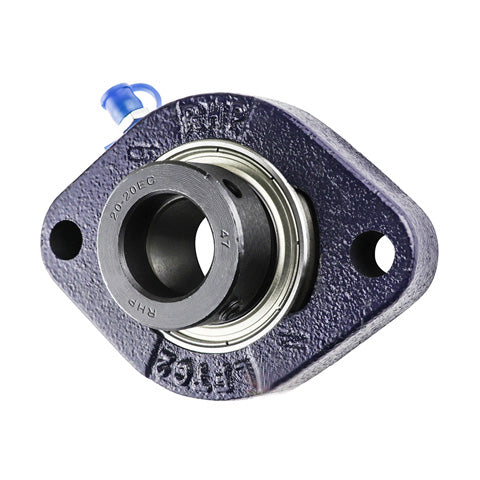

RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- LFTC
- Bolt Hole Centres:
- 76mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 71mm |
| H | 96mm |
| J | 76mm |
| G | 8mm |
| A | 17.5mm |
| A2 | 32.82mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 38.1mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25ECG+insonly">1225-25ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
