SKU: LFTC15/16EC-RHP

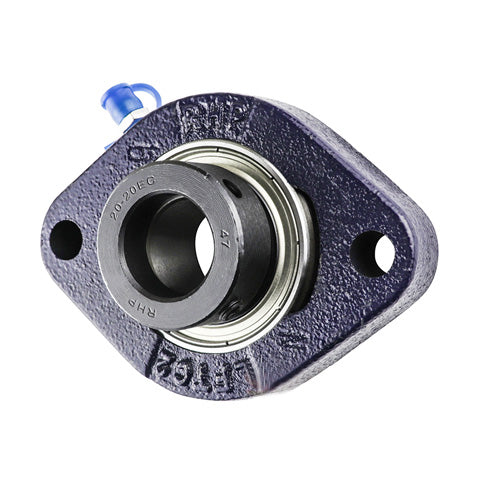

RHP LFTC15/16EC Two Bolt Oval Cast Iron Flange Housing Bearing 15/16 inch Bore
RHP LFTC15/16EC Two Bolt Oval Cast Iron Flange Housing Bearing 15/16 inch Bore
Regular price
Rs. 5,294.76
ex VAT
Regular price
Sale price
Rs. 5,294.76
ex VAT
In stock
Price Break
10+
Rs. 4,712.34
19+
Rs. 4,447.60
29+
Rs. 4,394.65
39+
Rs. 4,341.70
49+
Rs. 4,288.76
74+
Rs. 4,235.81
99+
Rs. 3,971.07
199+
Rs. 3,918.12
249+
Rs. 3,865.17
499+
Rs. 3,812.23
999+
Rs. 3,706.33
Couldn't load pickup availability
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 75.997mm = 2.992 inch
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 2.795 inch |
| H | 3.78 inch |
| J | 2.992 inch |
| G | 0.3125 inch |
| A | 0.689 inch |
| A2 | 1.292 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-15/16ECG+insonly">1225-15/16ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
