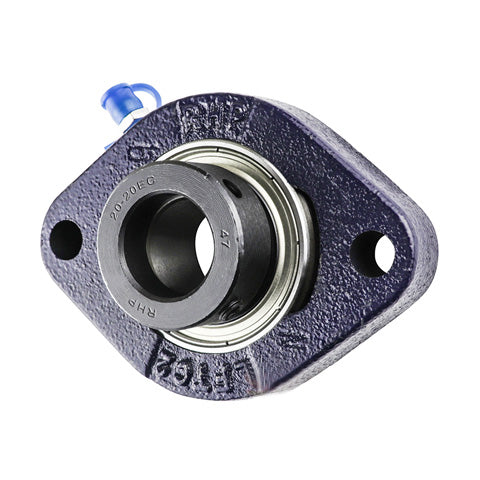

• RHP LFTC12EC Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
1 1

SKU: LFTC12EC-RHP

RHP LFTC12EC Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore

RHP LFTC12EC Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
Rs. 4,210.54
Rs. 4,210.54
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 3,747.38
19+ Rs. 3,536.85
29+ Rs. 3,494.75
39+ Rs. 3,452.64
49+ Rs. 3,410.54
74+ Rs. 3,368.43
99+ Rs. 3,157.91
199+ Rs. 3,115.80
249+ Rs. 3,073.69
499+ Rs. 3,031.59
999+ Rs. 2,947.38
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back
Brand / Quality:
RHP - High Quality
Inside Diameter:
12mm
Style:
LFTC
Bolt Hole Centres:
63.5mm

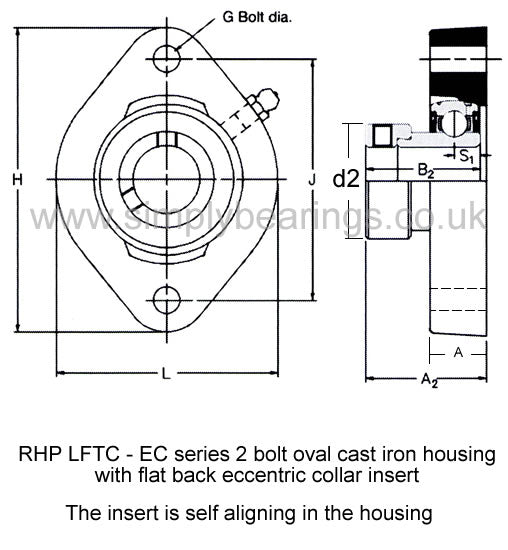

Technical
Bore 12mm
L 58.5mm
H 81mm
J 63.5mm
G 6mm
A 15mm
A2 30.43mm
B2 28.54mm
s1 6.55mm
d2 28.58mm
Dynamic load 9550 N
Static load 4800 N
Rec max speed 7000 rpm
Weight 0.3 kg
Insert <a href="advanced_search_result.php?keywords=1217-12ECG+insonly">1217-12ECG Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
