SKU: LFTC12-RHP

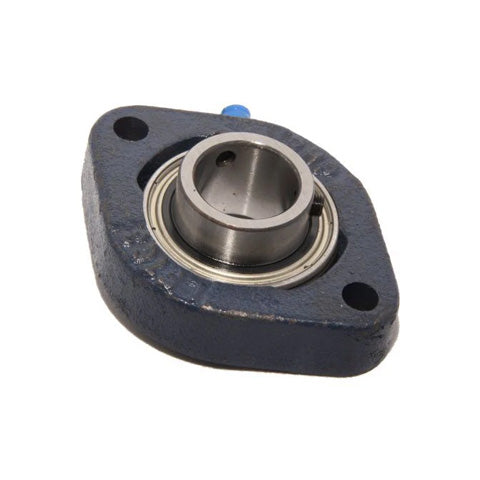

RHP LFTC12 Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
RHP LFTC12 Two Bolt Oval Cast Iron Flange Housing Bearing 12mm Bore
Regular price
Rs. 4,056.24
ex VAT
Regular price
Sale price
Rs. 4,056.24
ex VAT
In stock
Price Break
10+
Rs. 3,610.05
19+
Rs. 3,407.24
29+
Rs. 3,366.68
39+
Rs. 3,326.12
49+
Rs. 3,285.55
74+
Rs. 3,244.99
99+
Rs. 3,042.18
199+
Rs. 3,001.62
249+
Rs. 2,961.06
499+
Rs. 2,920.49
999+
Rs. 2,839.37
Couldn't load pickup availability
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12mm
- Style:
- LFTC
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| Bore | 12mm |
|---|---|
| L | 58.5mm |
| H | 81mm |
| J | 63.5mm |
| G | 6mm |
| A | 15mm |
| A1 | 24.27mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load | 9550 N |
| Static load | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-12G+insonly">1017-12G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
