SKU: LFRI.50/8-62Z.MB

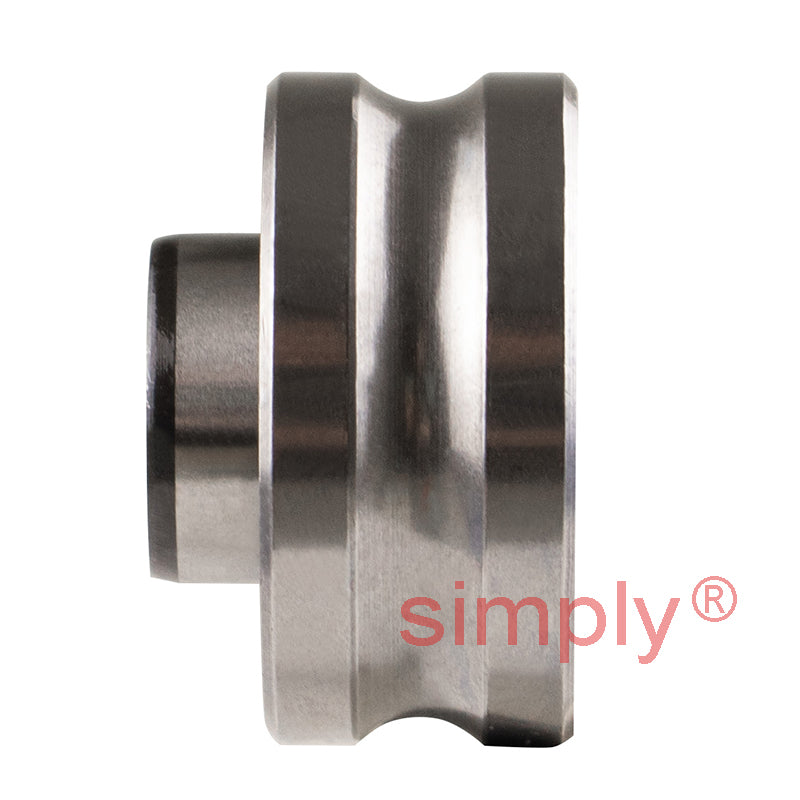

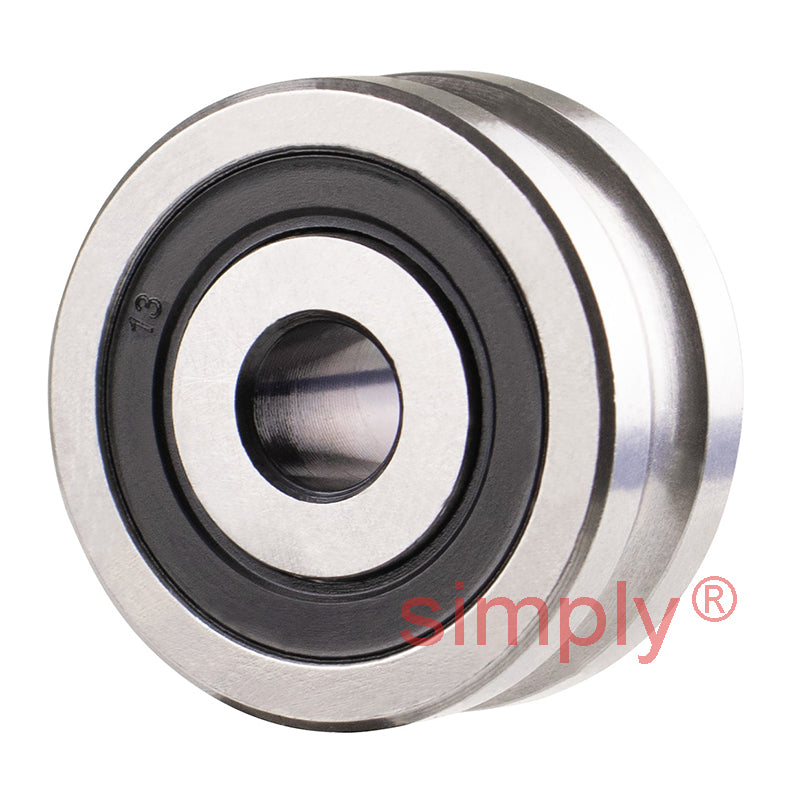

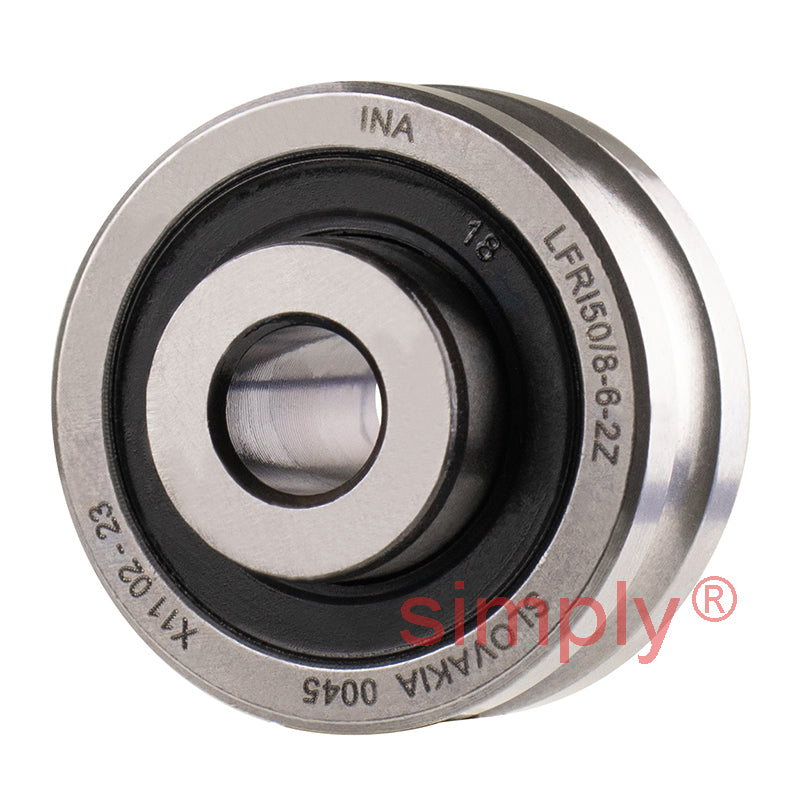

Major Brand LFRI50/8-62Z Yoke Type Track Roller with U Groove 6.1x24x11mm
Major Brand LFRI50/8-62Z Yoke Type Track Roller with U Groove 6.1x24x11mm
Regular price
Rs. 2,742.16
Regular price
Sale price
Rs. 2,742.16
Taxes included.
Equivalent to: LFRI50/8KDD LFRI50862Z
In stock
Price Break
10+
Rs. 2,440.52
19+
Rs. 2,303.41
29+
Rs. 2,275.99
39+
Rs. 2,248.57
49+
Rs. 2,221.15
74+
Rs. 2,193.73
99+
Rs. 2,056.62
199+
Rs. 2,029.20
249+
Rs. 2,001.78
499+
Rs. 1,974.36
999+
Rs. 1,919.51
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. The extended inner ring allows for fixation to any construction with use of a screw. |
Equivalent: LFRI50/8KDD LFRI50862Z
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 6.1mm
- Outside Diameter:
- 24mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded

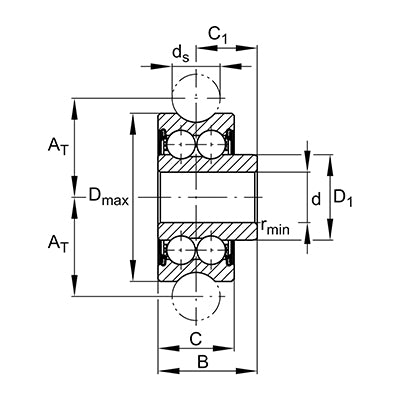

Technical
Technical
| d | 6.1mm |
|---|---|
| D max | 24mm |
| B | 15.1mm |
| AT | 14mm |
| C | 11mm |
| ds | 6mm |
| r min | 0.5mm |
| Dynamic load | 4100 N |
| Static load | 2300 N |
