SKU: LFR.50/5-62Z.MB

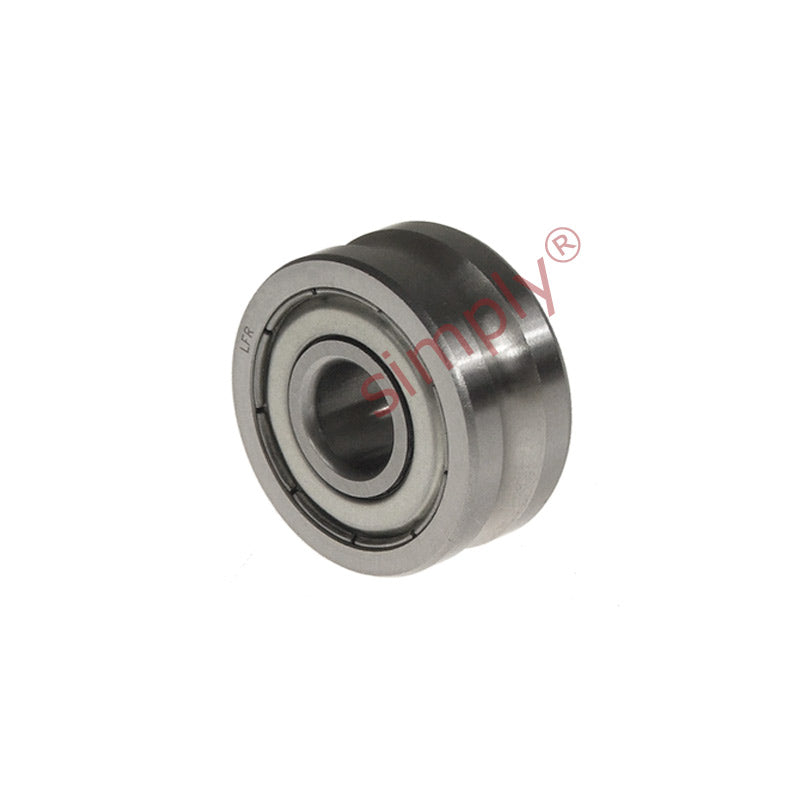

Major Brand LFR50/5-62Z Yoke Type Track Roller with U Groove 5x17x7/8mm
Major Brand LFR50/5-62Z Yoke Type Track Roller with U Groove 5x17x7/8mm
Regular price
Rs. 2,742.16
Regular price
Sale price
Rs. 2,742.16
Taxes included.
Equivalent to: LFR50/5KDD LFR50562ZHLC
In stock
Price Break
10+
Rs. 2,440.52
19+
Rs. 2,303.41
29+
Rs. 2,275.99
39+
Rs. 2,248.57
49+
Rs. 2,221.15
74+
Rs. 2,193.73
99+
Rs. 2,056.62
199+
Rs. 2,029.20
249+
Rs. 2,001.78
499+
Rs. 1,974.36
999+
Rs. 1,919.51
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
Equivalent: LFR50/5KDD LFR50562ZHLC
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 5mm
- Outside Diameter:
- 17mm
- Width:
- 7mm / 8mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 5mm |
|---|---|
| D max | 17mm |
| B | 8mm |
| AT | 10.5mm |
| C | 7mm |
| ds | 6mm |
| r min | 0.2mm |
| Dynamic load | 1270 N |
| Static load | 820 N |
| Speed in grease | 1300 rpm |
| Speed in oil | 1780 rpm |
