SKU: LAZY/680

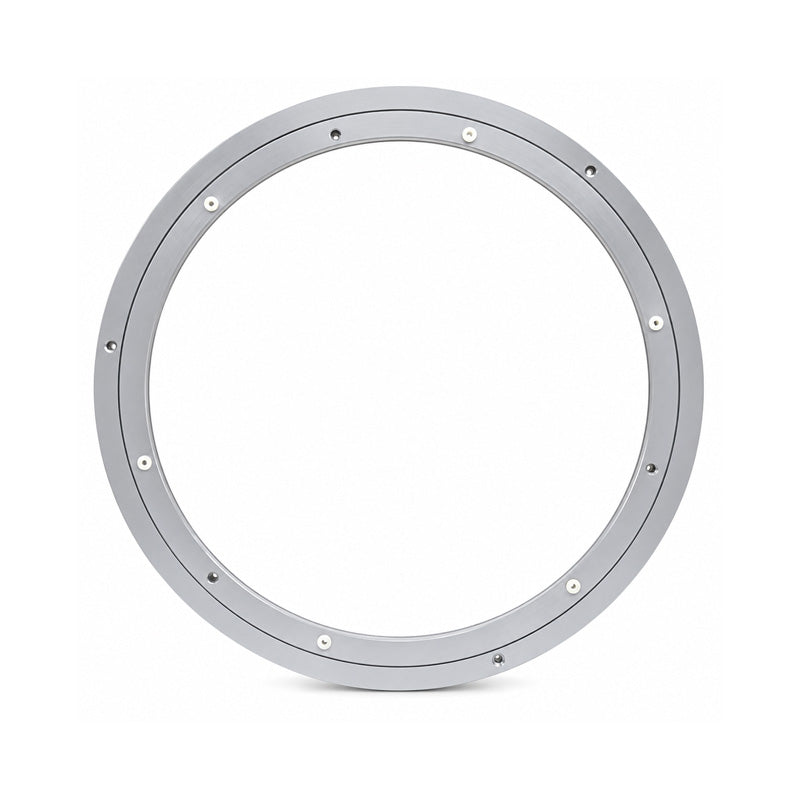

680mm Round Lazy Susan Rotating Aluminium Turntable Bearing
680mm Round Lazy Susan Rotating Aluminium Turntable Bearing
Regular price
Rs. 11,761.08
Regular price
Sale price
Rs. 11,761.08
Taxes included.
In stock
Price Break
10+
Rs. 10,467.36
19+
Rs. 9,879.31
29+
Rs. 9,761.70
39+
Rs. 9,644.09
49+
Rs. 9,526.47
74+
Rs. 9,408.86
99+
Rs. 8,820.81
199+
Rs. 8,703.20
249+
Rs. 8,585.59
499+
Rs. 8,467.98
999+
Rs. 8,232.76
Description
Description
Lazy Susan Turntable Bearings: Aluminium construction with fixing holes in inner plate, spins freely on a single row of captive ball bearings. Maximum load 460 lbs
Benefits: Heavy duty, rust and weather proof, easily mounted, will carry high loads, can be used in countless applications.
Note: Lazy susan turntables are supplied un-lubricated and may sound noisy until lubricated with either oil or grease as determined by your application.
The dimensions of this multisourced, semi-precision component are approximate. Actual dimensions available on request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 600mm = 23.62 inch
- Outside Diameter:
- 680mm = 26.77 inch
- Thickness:
- 14mm = 0.55 inch

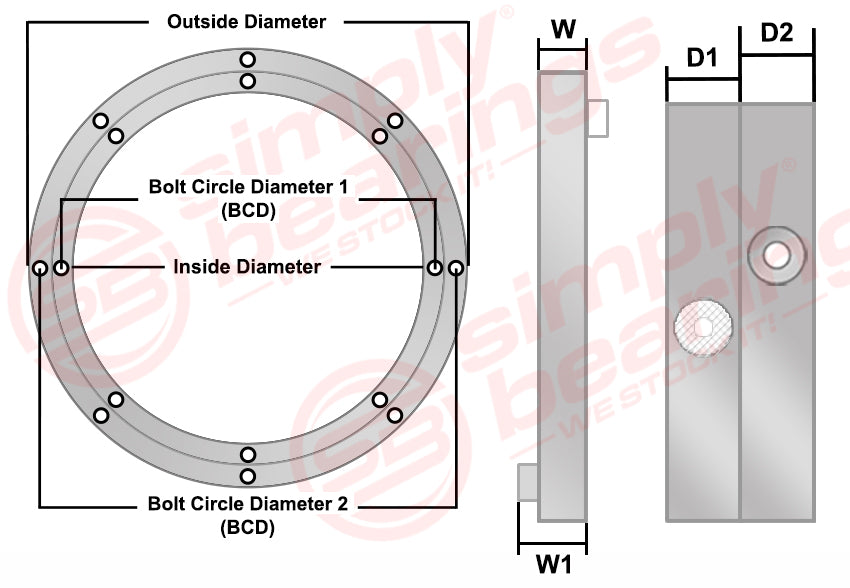

Technical
Technical
| Nominal Inside Diameter | 600mm = 23.62 inch |
|---|---|
| Nominal Outside Diameter | 680mm = 26.77 inch |
| W | 14mm = 0.55 inch |
| W1 | 18mm = 0.71 inch |
| D1 | 19.5mm = 0.77 inch |
| D2 | 20.5mm = 0.81 inch |
| Bolt Hole Diameter | 7.5mm = 0.29 inch |
| Bolt Circle Diameter 1 | 609.75mm = 24.01 inch |
| Bolt Circle Diameter 2 | 669.75mm = 26.37 inch |
| Max Load Weight | 460 lbs |
| Weight | 3kg |
