SKU: L163149/L163110CD/L163149XE-TIM

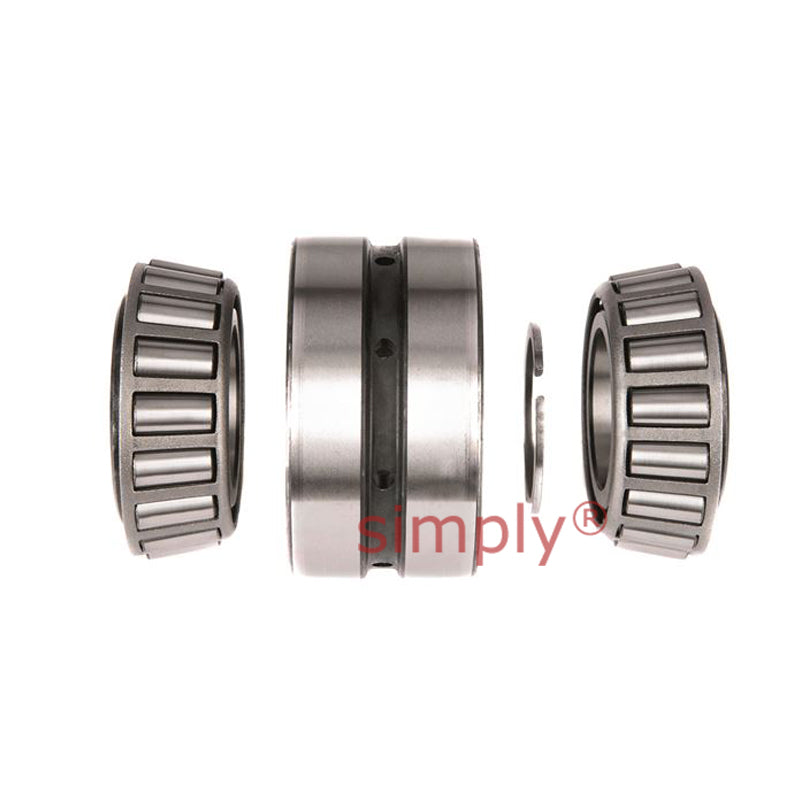

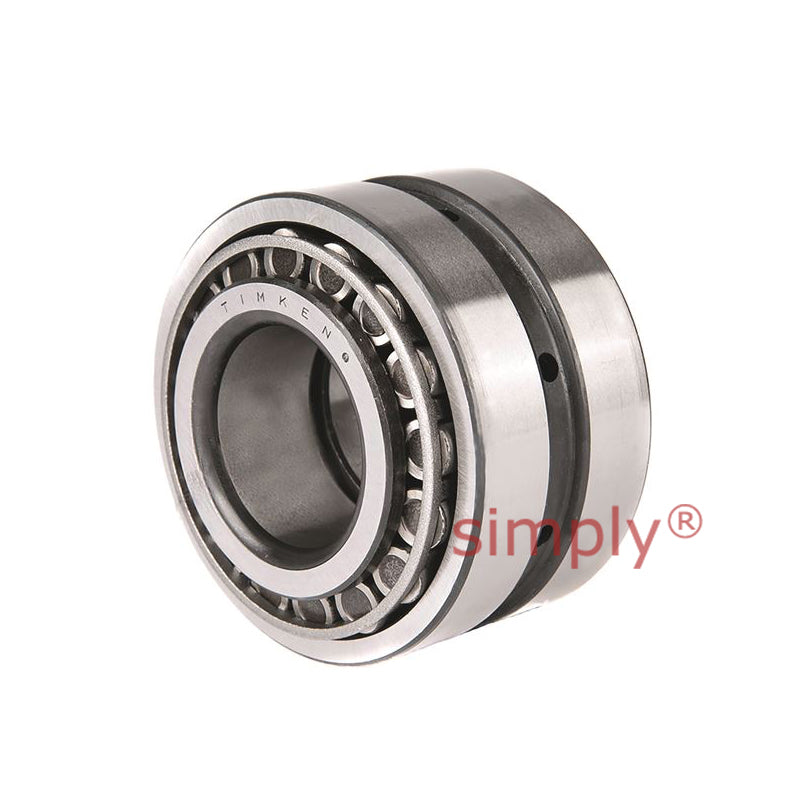

Timken L163149/L163110CD/L163149XE TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch - Allow 2-3 Days
Timken L163149/L163110CD/L163149XE TDO Double Outer Race Taper Roller Bearing 14x17.5x5.375x4.375 inch - Allow 2-3 Days
Regular price
Rs. 1,350,878.36
Regular price
Sale price
Rs. 1,350,878.36
Taxes included.
Low stock
Price Break
2+
Rs. 1,350,743.27
5+
Rs. 1,344,123.97
10+
Rs. 1,337,369.58
15+
Rs. 1,323,860.79
20+
Rs. 1,310,352.01
30+
Rs. 1,296,843.23
50+
Rs. 1,283,334.44
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 355.60mm = 14 inch
- Outside Diameter:
- 444.50mm = 17.5 inch
- Width:
- 136.53mm = 5.375 inch
Technical
Technical
| d | 355.6mm = 14 inch |
|---|---|
| D | 444.5mm = 17.5 inch |
| T | 136.525mm = 5.375 inch |
| C | 111.125mm = 4.375 inch |
| Dynamic (1) C1 | 1250000N |
| Factors (5) e | 0.31 |
| Factors (5) Y1 | 2.2 |
| Factors (5) Y2 | 3.27 |
| Dynamic (2) C90 | 186000N |
| Dynamic (2) Ca90 | 98000N |
| Dynamic (2) C90(2) | 324000N |
| Factors (5) K | 1.9 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 374mm = 14.72 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 430mm = 16.93 inch |
| Pin Ka | 22.1mm = 0.87 inch |
| Pin Kb | 9.4mm = 0.37 inch |
| G1 | 3210 |
| G2 | 621 |
| Cg | 0.1838 |
