SKU: KW253.VIT

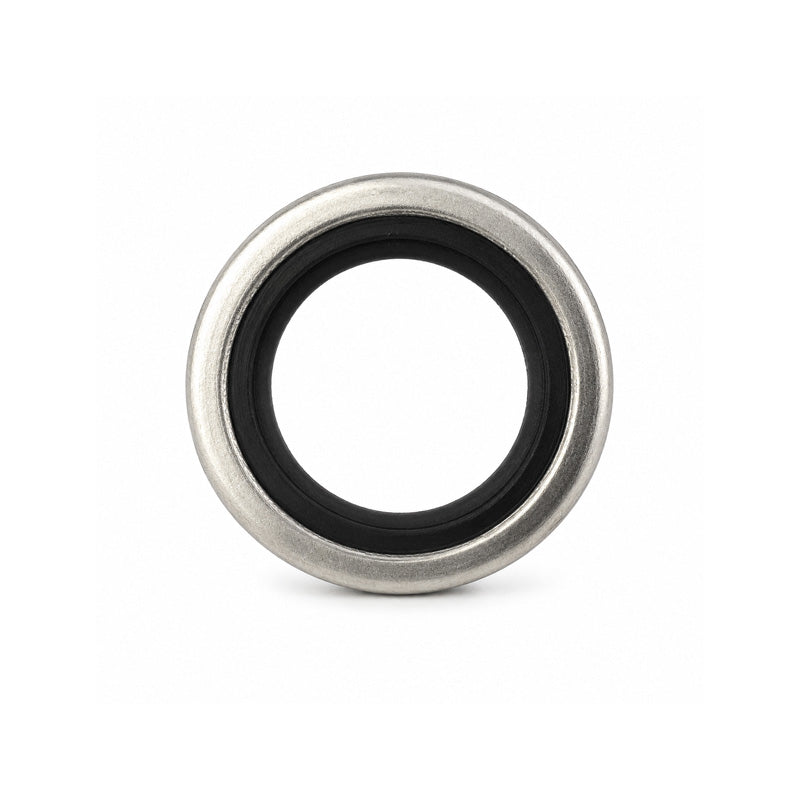

FKM Bonded Sealing Washer M16
FKM Bonded Sealing Washer M16
Regular price
Rs. 275.24
Regular price
Sale price
Rs. 275.24
Taxes included.
In stock
Price Break
5+
Rs. 192.67
10+
Rs. 165.14
20+
Rs. 151.38
50+
Rs. 137.62
100+
Rs. 110.10
500+
Rs. 96.33
1000+
Rs. 82.57
Description
Description
Bonded Seal Washers: These washers are used to seal bolt heads and prevent leakage from hydraulic fittings, pipe joints and valve bodies. A bonded washer consists of a metal washer bonded to a rubber internal diameter that is wider than the washer. As the bolt is tightened, the rubber seal element is compressed until the bolt head contacts with the metal outer of the washer, creating an efficient high-pressure seal. The inside material will be made from FKM Rubber. Nitrile, EPDM and Silicone are available upon request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- M16
- Seals / Shields:
- FKM
- Material:
- Mild Steel
Technical
Technical
| a | 25.3mm approx. |
|---|---|
| b | 17.5mm approx. |
| d | 21.5mm approx. |
| h | 1.5mm approx. |
| g | 15.8mm approx. |
| f | 3mm approx. |
