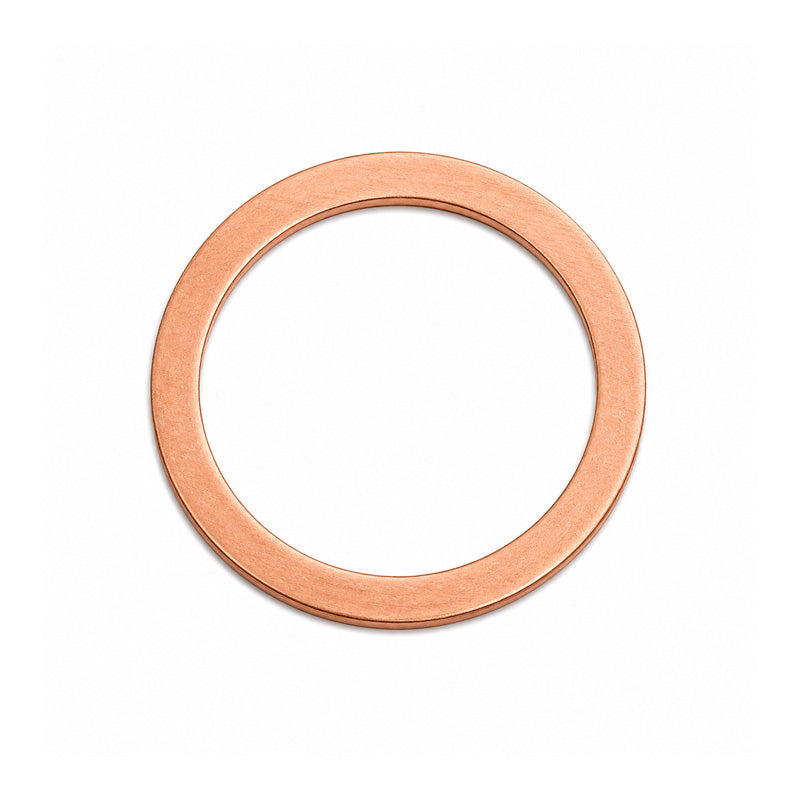

• Annealed Copper Sealing Washer 24x32x2.5mm
1 1

SKU: KW164

Annealed Copper Sealing Washer 24x32x2.5mm

Annealed Copper Sealing Washer 24x32x2.5mm
Rs. 121.62
Rs. 121.62
Sale Sold out
Taxes included.

In stock

Price Break
5+ Rs. 85.13
10+ Rs. 72.97
20+ Rs. 66.89
50+ Rs. 60.81
100+ Rs. 48.65
500+ Rs. 42.57
1000+ Rs. 36.49
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Annealed Copper Washers: Annealed or softened copper washers are ideal as replacements for drain plug washers in a wide variety of applications, they are well suited to use in outdoor applications where they may be exposed to the weather. They can be used in pneumatic fittings and low pressure hydraulic systems
Tolerances: Thickness tolerance is approx +- 0.2mm, The bore tolerance is approx +0.3mm and Outside Diameter tolerance is approx +- 0.2mm, This is not a precision component.
Benefits: Cost effective replacement, ready annealed.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
24mm approx.
Outside Diameter:
32mm approx.
Width:
2.5mm approx.
Technical
Inside Diameter (d) 24mm approx.
Outside Diameter (D) 32mm approx.
Width (B) 2.5mm approx.
Inside Tolerance +0.3mm
Outside Tolerance -0.2mm
Thickness Tolerance +/- 0.2mm
