Budget KRV62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Budget KRV62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Regular price
Rs. 8,127.91
Regular price
Sale price
Rs. 8,127.91
Taxes included.
In stock
Price Break
10+
Rs. 7,233.84
19+
Rs. 6,827.44
29+
Rs. 6,746.17
39+
Rs. 6,664.89
49+
Rs. 6,583.61
74+
Rs. 6,502.33
99+
Rs. 6,095.93
199+
Rs. 6,014.65
249+
Rs. 5,933.37
499+
Rs. 5,852.10
999+
Rs. 5,689.54
Description
Description

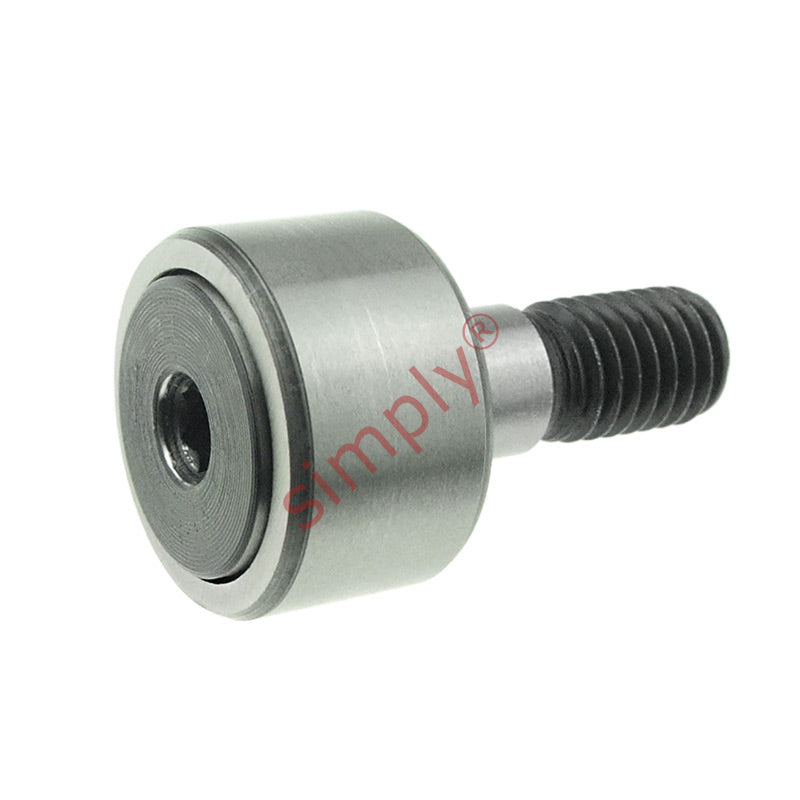

KRV-PP Series Crowned Cam Followers: These cam followers incorporate a full complement needle roller assembly allowing for maximum load support. Manufactured with a needle roller design that permits a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed-on side washer. Also, these cam followers are supplied with contact seals on both sides. Because of the high load tolerance, these cam followers cannot operate continuously at the same high speeds as the KR series. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 62mm
- Width:
- 29mm
- Pitch:
- M24x1.5
Technical
Technical
| D | 62mm |
|---|---|
| C | 29mm |
| d (Stud Diameter) | 24mm |
| B | 80mm |
| B1 | 49.5mm |
| B2 | 11mm |
| C1 | 0.8mm |
| d1 | 44mm |
| G | M24x1.5 |
| G1 | 25mm |
| M1 | 4mm |
| r min | 1mm |
| SW | 14mm |
| Dynamic load | 31400 N |
| Static load | 72000 N |
| Fatigue load limit Pu | 9000 N |
| Radial dynamic load | 72000 N |
| Radial static load | 102000 N |
| Speed rating | 1100 rpm |
| Weight | 790 g |
