SKU: KRE26PPA-EU

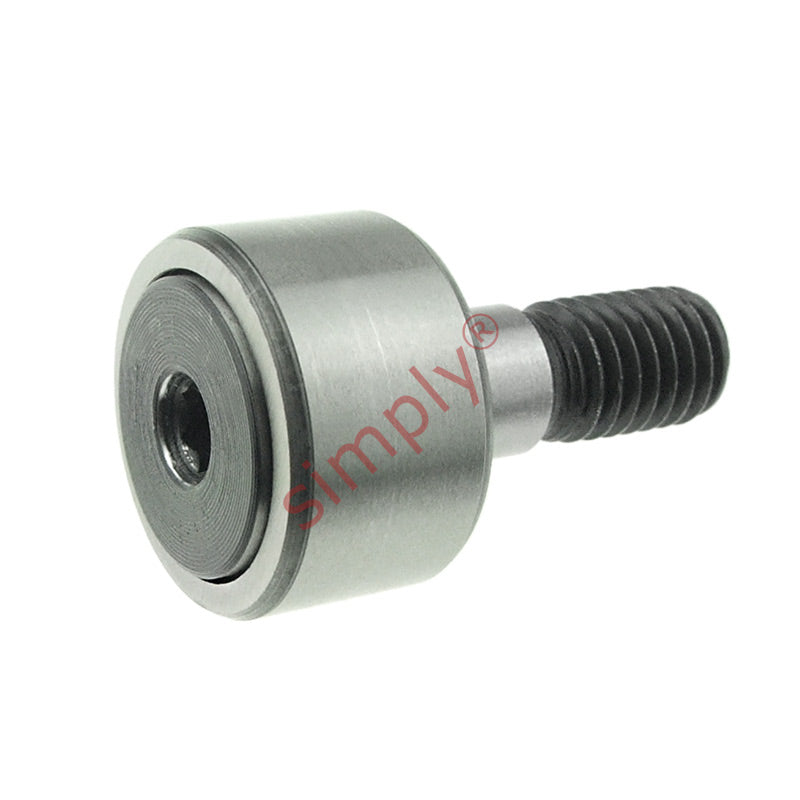

Budget KRE26PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 26x12x13 M10x1 Thread
Budget KRE26PPA Contact Sealed Crowned Cam Follower with Eccentric Stud 26x12x13 M10x1 Thread
Regular price
Rs. 2,111.03
Regular price
Sale price
Rs. 2,111.03
Taxes included.
In stock
Price Break
10+
Rs. 1,878.82
19+
Rs. 1,773.27
29+
Rs. 1,752.15
39+
Rs. 1,731.04
49+
Rs. 1,709.93
74+
Rs. 1,688.82
99+
Rs. 1,583.27
199+
Rs. 1,562.16
249+
Rs. 1,541.05
499+
Rs. 1,519.94
999+
Rs. 1,477.72
Description
Description
KRE-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on-side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 26mm
- Width:
- 12mm
- Pitch:
- M10x1
Technical
Technical
| D | 26mm |
|---|---|
| C | 12mm |
| d (Stud Diameter) | 13mm |
| B | 36mm |
| B1 | 23mm |
| C1 | 0.6mm |
| d1 | 17.5mm |
| G | M10x1 |
| G1 | 12mm |
| r min | 0.3mm |
| SW | 5mm |
| Eccentric stud c | 0.5mm |
| B3 | 10mm |
| Dynamic load | 4840 N |
| Static load | 6000 N |
| Fatigue load limit Pu | 655 N |
| Radial dynamic load | 9300 N |
| Radial static load | 13200 N |
| Speed rating | 8000 rpm |
| Weight | 62 g |
