SKU: KR40B-MB-IKO
IKO KR40B Crowned Cam Follower 40x20x18 M18x1.5 Thread
IKO KR40B Crowned Cam Follower 40x20x18 M18x1.5 Thread
Regular price
Rs. 4,539.55
Regular price
Sale price
Rs. 4,539.55
Taxes included.
In stock
Price Break
5+
Rs. 4,494.15
10+
Rs. 4,312.57
20+
Rs. 4,221.78
50+
Rs. 4,085.60
100+
Rs. 3,994.80
500+
Rs. 3,767.83
1000+
Rs. 3,177.69
Description
Description
KR-B Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- IKO - High Quality
- Outside Diameter:
- 40mm
- Width:
- 20mm
- Pitch:
- M18x1.5
Technical
Technical

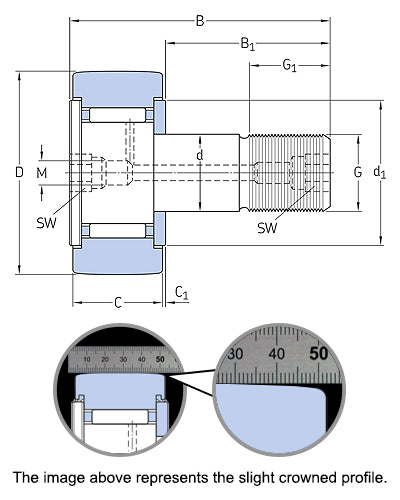

| D | 40mm |
|---|---|
| C | 20mm |
| d(Stud Diameter) | 18mm |
| B | 58mm |
| B1 | 36.5mm |
| B2 | 8mm |
| C1 | 0.8mm |
| d1 | 31.5mm |
| G | M18x1.5 |
| G1 | 19mm |
| M1 | 3mm |
| r min | 1mm |
| SW | 8mm |
| Dynamic load | 10500 N |
| Static load | 14600 N |
| Fatigue load limit Pu | 1730 N |
| Radial dynamic load | 12500 N |
| Radial static load | 18000 N |
| Speed rating | 2900 rpm |
| Weight | 250 g |
