SKU: KMTA9-SKF

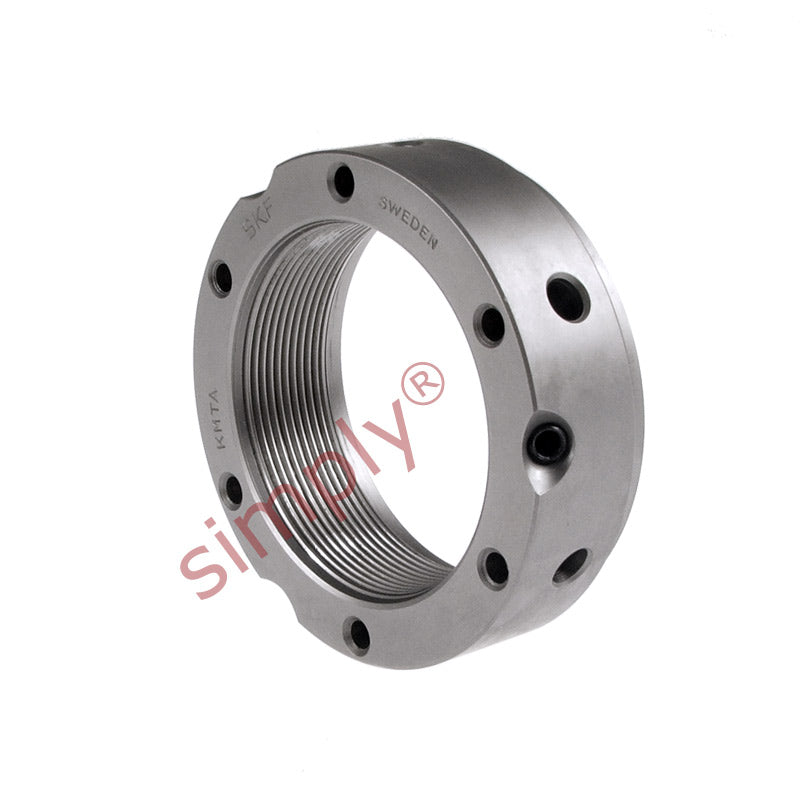

SKF KMTA9 Precision Locking Nut with Locking Pins M45x1.5mm
SKF KMTA9 Precision Locking Nut with Locking Pins M45x1.5mm
Regular price
Rs. 17,016.12
ex VAT
Regular price
Sale price
Rs. 17,016.12
ex VAT
In stock
Price Break
5+
Rs. 16,845.96
10+
Rs. 16,165.31
20+
Rs. 15,824.99
50+
Rs. 15,314.51
100+
Rs. 14,974.19
500+
Rs. 14,123.38
1000+
Rs. 11,911.28
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M45x1.5
Technical
Technical
| G | M45x1.5 |
|---|---|
| d2 | 68mm |
| d3 | 58mm |
| d4 | 48mm |
| B | 22mm |
| J1 | 58mm |
| J2 | 12mm |
| N1 | 4.3mm |
| N2 | 6mm |
| Axial load capacity | 240 kN |
| Loosening torque | 95 Nm |
| Weight | 0.33 kg |
| Spanner | B68-75 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA9 |
