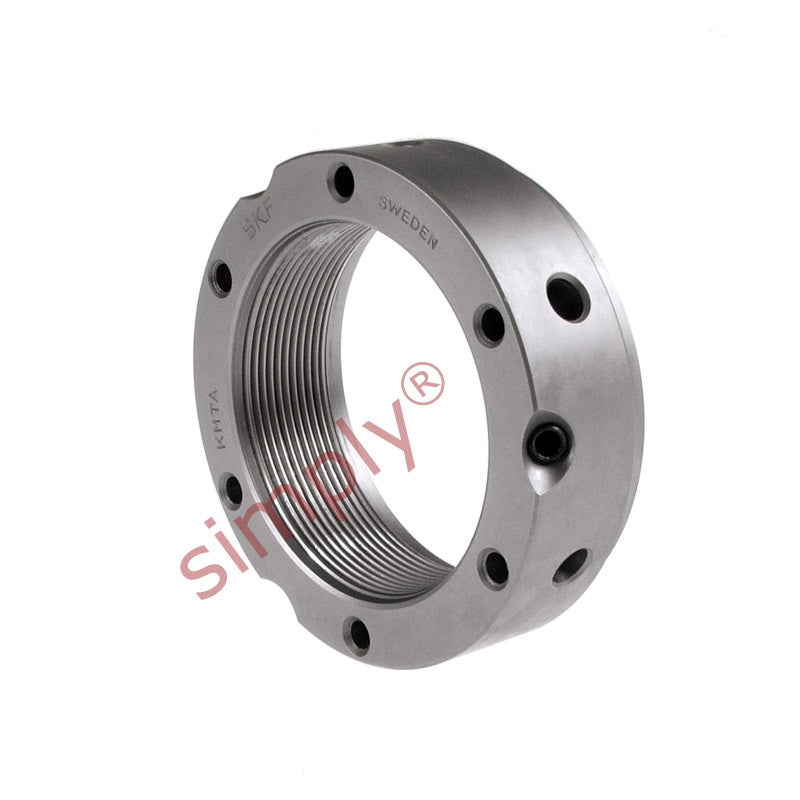

SKF KMTA16 Precision Locking Nut with Locking Pins M80x2mm
SKF KMTA16 Precision Locking Nut with Locking Pins M80x2mm
Regular price
Rs. 21,869.22
ex VAT
Regular price
Sale price
Rs. 21,869.22
ex VAT
In stock
Price Break
10+
Rs. 19,463.61
19+
Rs. 18,370.14
29+
Rs. 18,151.45
39+
Rs. 17,932.76
49+
Rs. 17,714.07
74+
Rs. 17,495.38
99+
Rs. 16,401.92
199+
Rs. 16,183.22
249+
Rs. 15,964.53
499+
Rs. 15,745.84
999+
Rs. 15,308.45
Couldn't load pickup availability
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M80x2
Technical
Technical
| G | M80x2 |
|---|---|
| d2 | 110mm |
| d3 | 97mm |
| d4 | 83mm |
| B | 30mm |
| J1 | 95mm |
| J2 | 16mm |
| N1 | 6.4mm |
| N2 | 8mm |
| Axial load capacity | 620 kN |
| Loosening torque | 325 Nm |
| Weight | 1 kg |
| Spanner | B110-115 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA16 |
