SKU: KMTA13-SKF

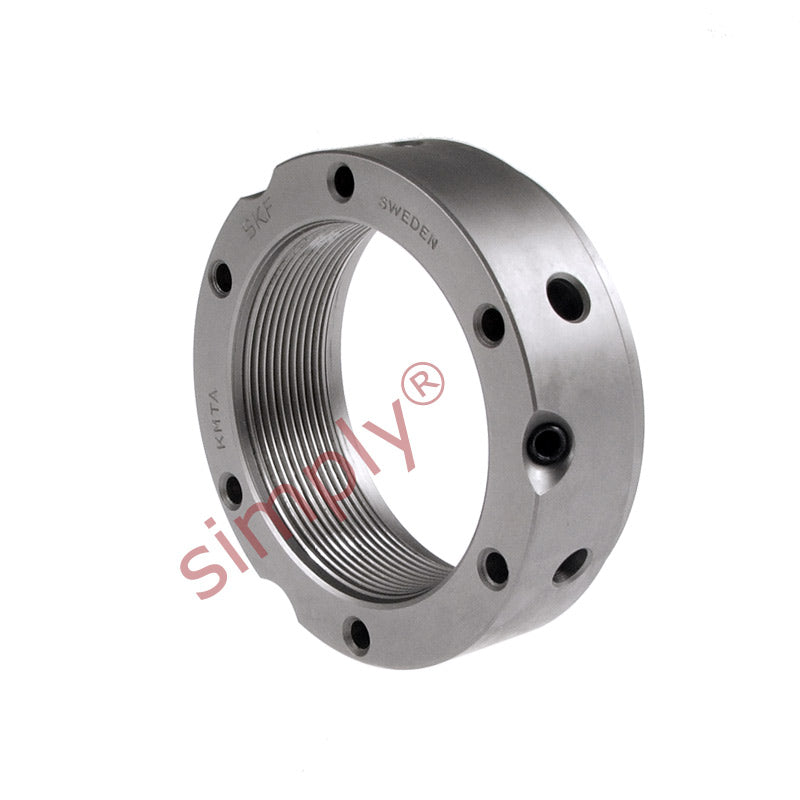

SKF KMTA13 Precision Locking Nut with Locking Pins M65x1.5mm
SKF KMTA13 Precision Locking Nut with Locking Pins M65x1.5mm
Regular price
Rs. 12,040.17
Regular price
Sale price
Rs. 12,040.17
Taxes included.
Low stock
Price Break
10+
Rs. 10,715.75
19+
Rs. 10,113.74
29+
Rs. 9,993.34
39+
Rs. 9,872.94
49+
Rs. 9,752.54
74+
Rs. 9,632.14
99+
Rs. 9,030.13
199+
Rs. 8,909.73
249+
Rs. 8,789.32
499+
Rs. 8,668.92
999+
Rs. 8,428.12
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M65x1.5
Technical
Technical
| G | M65x1.5 |
|---|---|
| d2 | 88mm |
| d3 | 80mm |
| d4 | 68mm |
| B | 25mm |
| J1 | 78.5mm |
| J2 | 13mm |
| N1 | 5.3mm |
| N2 | 6mm |
| Axial load capacity | 460 kN |
| Loosening torque | 170 Nm |
| Weight | 0.52 kg |
| Spanner | B80-90 |
| Grub Screw | M8 |
| Screw torque | 18 Nm |
| Name | KMTA13 |
