SKU: KMT38-SKF

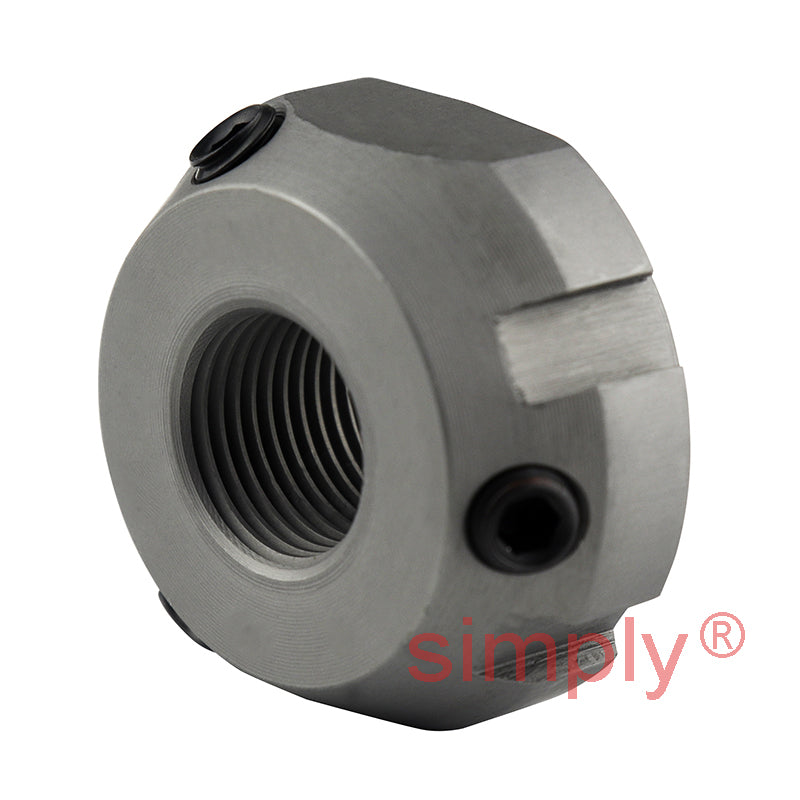

SKF KMT38 Precision Lock Nut with Locking Pins M190x3mm
SKF KMT38 Precision Lock Nut with Locking Pins M190x3mm
Regular price
Rs. 90,203.90
ex VAT
Regular price
Sale price
Rs. 90,203.90
ex VAT
In stock
Price Break
2+
Rs. 85,693.71
5+
Rs. 81,183.51
10+
Rs. 76,673.32
15+
Rs. 72,163.12
20+
Rs. 70,359.04
30+
Rs. 68,554.96
50+
Rs. 59,534.57
Couldn't load pickup availability
Description
Description
|
SKF Precision KMT Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation and a chamfered front face for ease of access to the radial locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M190x3
Technical
Technical
| d1 | 212mm |
|---|---|
| d2 | 225mm |
| d3 | 214mm |
| d4 | 192mm |
| B | 32mm |
| b | 16mm |
| h | 7mm |
| Axial load capacity | 1280 kN |
| Loosening torque | 2050 Nm |
| Weight | 2.4 kg |
| G | M190x3 |
| Spanner | TMFN30-40 |
| Grub screw | M10 |
| Screw torque | 35 Nm |
